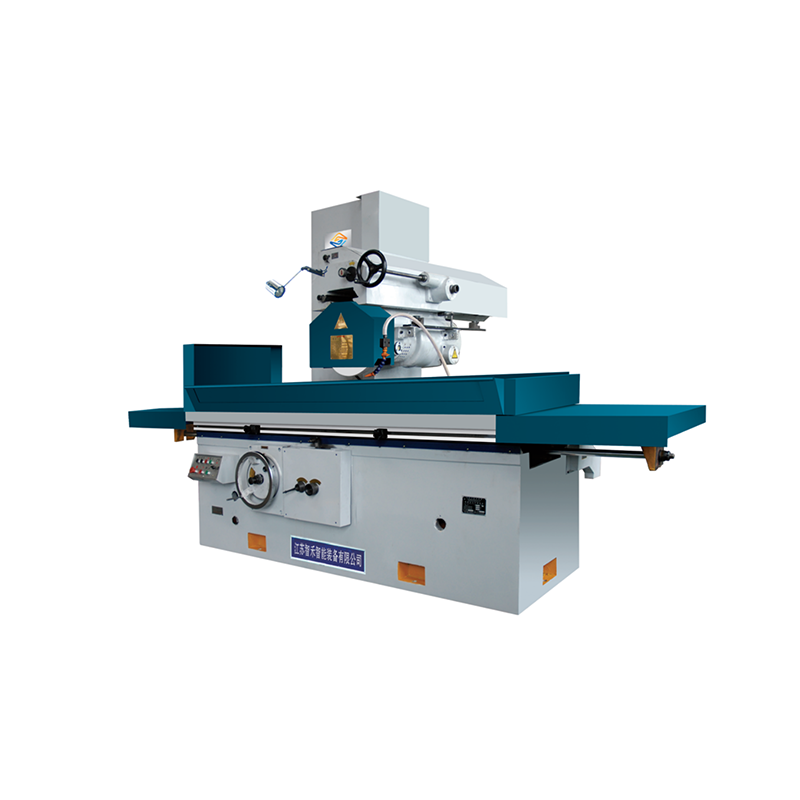

Product Overview
Designed for precision machining of large workpieces, this series combines robust construction with exceptional operational accuracy, making it a staple in heavy-duty manufacturing environments. With a 1250mm worktable length and head-movable design, the grinders deliver consistent results across various materials, from steel and iron to non-ferrous alloys. Whether for batch production or custom processing, these machines meet the demands of high-precision surface grinding with reliability and efficiency.
Key Features
Precision Grinding Performance
Equipped with a spindle motor of 7.5Kw and a grinding wheel speed of 1440r/min, the Head Movable Surface Grinder achieves a surface roughness of Ra:0.63μm and workpiece surface parallelism of 300:0.008mm. The manual vertical movement of the grinding head offers 0.01mm per graduation precision and 1mm per revolution, ensuring ultra-fine adjustments for critical machining tasks.
Robust & Stable Construction
Built with a net weight ranging from 5300Kg to 5800Kg (gross weight 6000Kg-6500Kg), the grinders feature a heavy-duty base that minimizes vibration during operation. The integrated oil pump motor (4Kw) ensures smooth lubrication of moving parts, extending machine lifespan and reducing maintenance needs.
Versatile Worktable Capacity
The worktable dimensions (L×W×H) vary by model: 1250×500×600mm (M7150), 1250×600×600mm (M7160), and 1250×630×600mm (M7163). With a maximum longitudinal movement of 1350mm and cross movement of 550-680mm, the grinders accommodate large and irregularly shaped workpieces with ease.
User-Friendly Operation
The rapid lifting motor (0.37Kw, 1440r/min) enables quick positioning of the grinding head, while the intuitive handwheel control simplifies precision adjustments. The standardized abrasive wheel size (Φ400×40×127mm) ensures easy replacement and wide availability of consumables.
Detailed Specifications
Description | Unit | M7150×1250 | M7160×1250 | M7163×1250 |
Size of worktable (L×W×H) | mm | 1250×500×600 | 1250×600×600 | 1250×630×600 |
Max. Longitudinal movement of worktable | mm | 1350 | 1350 | 1350 |
Max. Distance from spindle centerline to worktable surface | mm | 800 | 800 | 800 |
Max. Cross movement of grinding head | mm | 550 | 650 | 680 |
Vertical movement of grinding head (per graduation) | mm | 0.01 | 0.01 | 0.01 |
Vertical movement of grinding head (per revolution) | mm | 1 | 1 | 1 |
Rapid lifting motor power | Kw | 0.37 | 0.37 | 0.37 |
Rapid lifting motor speed | r/min | 1440 | 1440 | 1440 |
Abrasive wheel dimension (D×d×w) | mm | Φ400×40×127 | Φ400×40×127 | Φ400×40×127 |
Grinding wheel speed | r/min | 1440 | 1440 | 1440 |
Total motor power | Kw | 12 | 12 | 12 |
Spindle motor power | Kw | 7.5 | 7.5 | 7.5 |
Oil pump motor power | Kw | 4 | 4 | 4 |
Workpiece surface parallelism to base level | mm | 300:0.008 | 300:0.008 | 300:0.008 |
Surface roughness | μm | Ra:0.63 | Ra:0.63 | Ra:0.63 |
N/G weight | Kg | 5300/6000 | 5600/6300 | 5800/6500 |
Package (L×W×H) | mm | 3600×1930×2480 | 3800×1950×2480 | 3800×1950×2480 |
Application Scenarios
Heavy Machinery Manufacturing
Ideal for grinding large components such as machine bases, hydraulic cylinders, and gearboxes, the M7150/M7160/M7163×1250 Head Movable Surface Grinder ensures flatness and parallelism critical for mechanical performance.
Automotive & Agricultural Equipment
Used to process engine blocks, axle housings, and chassis parts, the grinder delivers consistent surface quality that enhances component durability and assembly precision.
Tool & Die Making
Suitable for sharpening and finishing metal molds, dies, and cutting tools, the machine’s high precision meets the strict tolerances required in mold manufacturing.
General Engineering Workshops
Versatile enough for small-batch production and custom machining, the grinder handles a wide range of workpieces, from plates and blocks to specialized components.
FAQ
What is the maximum workpiece size this grinder can handle?
The worktable length of 1250mm and maximum cross movement of up to 680mm (M7163×1250) allow the grinder to process workpieces up to 1350mm in length and 630mm in width, making it suitable for large-scale components.
How precise is the vertical adjustment of the grinding head?
The manual vertical movement offers 0.01mm per graduation, enabling micro-adjustments for ultra-precise grinding. This level of accuracy ensures consistent surface quality across all workpieces.
What type of abrasive wheel is compatible with this machine?
The grinder uses a standard abrasive wheel of Φ400×40×127mm, which is widely available in the market. Customers can choose wheels based on material hardness and grinding requirements.
Is the machine easy to maintain?
Yes, the integrated oil pump system simplifies lubrication, and the robust design minimizes wear. Regular maintenance (e.g., oil replacement, wheel inspection) ensures long-term reliability with minimal downtime.
