Product Overview

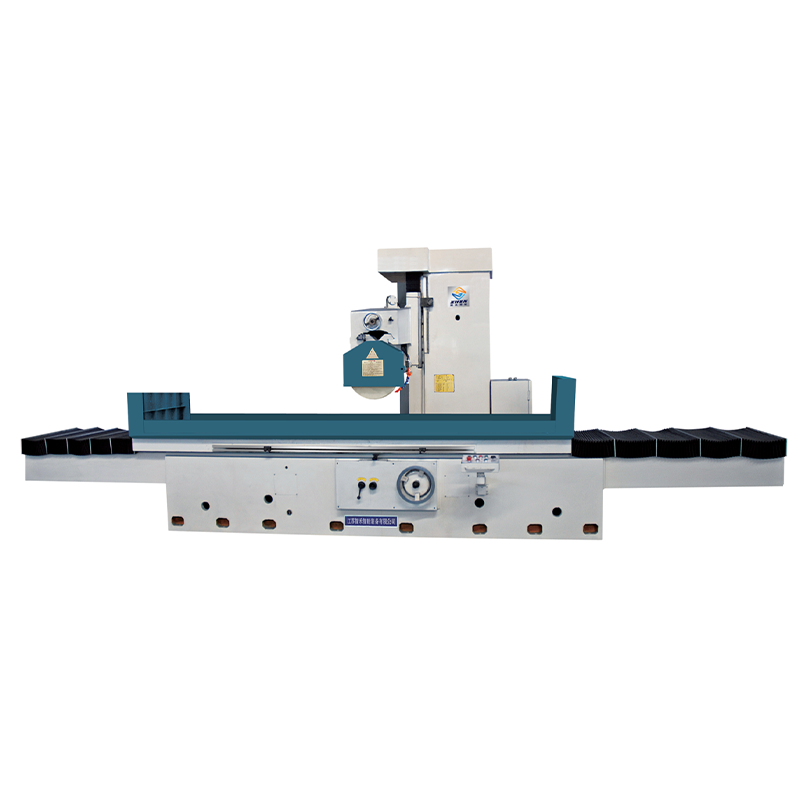

The M7180 Head Movable Surface Grinder is a premium horizontal spindle reciprocating table surface grinder engineered for uncompromising precision and stability. With a focus on detail-driven design, this machine integrates innovative structural features, high-performance components, and user-friendly functions to deliver exceptional grinding results. It achieves a workpiece surface parallelism of 0.008mm/300mm and surface roughness of Ra0.63μm, making it ideal for industries requiring high flatness and precision. Whether for heavy-duty grinding or micro-feeding tasks, the M7180 Series stands out as a reliable solution for automotive, mold, and precision machinery sectors.
Key Features
Anti-Plagiarism Structure Design for Superior Rigidity
The bed features a unique flat-V shaped guide rail with 7-plane contact, paired with PTFE guide rail strips for reduced wear and enhanced rigidity. The carriage is crafted from HT300 cast iron with a closed box-type dense rib structure, and its dovetail-shaped transverse guide rail (4 bearing surfaces) delivers unmatched vibration resistance and running accuracy—outperforming conventional designs.
Precise & Controllable Motion System
The worktable is hydraulically driven, enabling non-crawling operation at 3m/min for effortless tool setting. The grinding head cross movement offers two options: heavy-cutting (AC motor + synchronous belt + ball screw) and standard (hydraulic drive), both supporting accurate micro-feeding and groove side grinding. Manual fine-tuning sensitivity is optimized for precision.
High-Performance Core Components
Equipped with NSK precision angular contact ball bearings, the grinding head delivers exceptional vibration resistance and longevity. Both the worktable and carriage are made of HT300 cast iron, ensuring thermal stability and long-term reliable operation—from material selection to craftsmanship.
Humanized Hidden Technologies
The heavy-cutting model includes automatic lubrication with a low oil level alarm, while the standard model features forced lubrication for longitudinal guide rails. The cooling system uses two-stage filtration, and the ergonomically centralized electrical button box enhances operability. These details ensure durability and convenience.
Detailed Specifications
Description | Unit | M7180×1250 | M7180×1600 | M7180×2000 | M7180×3000 |
Size of worktable (L×W×H) | mm | 1250×800×600 | 1600×800×600 | 2000×800×600 | 3000×800×600 |
Max longitudinal movement of worktable | mm | 1350 | 1700 | 2100 | 3100 |
Max distance from spindle centerline to worktable | mm | 800 | 825 | 825 | 825 |
Max cross movement of grinding head | mm | 863 | 863 | 863 | 863 |
Grinding head vertical feed handwheel (per graduation) | mm | 0.01 | 0.005 | 0.005 | 0.005 |
Abrasive wheel dim (D×d×w) | mm | Φ400×50×203 | Φ400×50×203 | Φ450×63×203 | Φ450×63×203 |
Speed of grinding wheel | r/min | 1440 | 1440 | 1440 | 1440 |
Total power of motor | Kw | 17 | 18.5 | 23.605 | 27.605 |
Spindle motor power | Kw | 9 | 15 | 15 | 15 |
Workpiece surface parallelism (300mm) | mm | 0.008 | 0.008 | 0.008 | 0.008 |
Surface roughness | μm | Ra0.63 | Ra0.63 | Ra0.63 | Ra0.63 |
Machine weight (NG/weight) | Kg | 8500/9500 | 10000/11000 | 12000/13000 | 14500/15800 |
Application Scenarios
Automotive Parts Manufacturing
Perfect for grinding engine blocks, transmission gears, chassis components, and brake systems—requiring high flatness and surface finish. It ensures consistent quality for mass-produced automotive parts.
Mold & Die Industry
Ideal for precision grinding of mold surfaces, die cavities, and inserts. The machine’s high parallelism and roughness control meet the strict requirements of plastic injection molds, stamping dies, and die-casting molds.
Precision Machinery Components
Suitable for processing precision shafts, gears, and structural parts for medical equipment, electronic devices, and aerospace components. It supports micro-precision grinding for small to medium-sized high-value workpieces.
FAQ
What surface roughness can the M7180 Grinder achieve?
It consistently delivers a surface roughness of Ra0.63μm, suitable for precision parts and mold applications.
What is the maximum workpiece weight the machine can handle?
The worktable load ranges from 8500Kg (M7180×1250) to 14500Kg (M7180×3000), supporting heavy-duty grinding tasks.
Does the machine have an automatic lubrication system?
Yes, the heavy-cutting model features automatic lubrication with a low oil level alarm; the standard model uses forced lubrication for key guide rails.
What materials can it grind?
It excels in grinding steel, cast iron, alloy metals, and other ferrous materials—ideal for industrial and mold-related applications.
