Product Overview

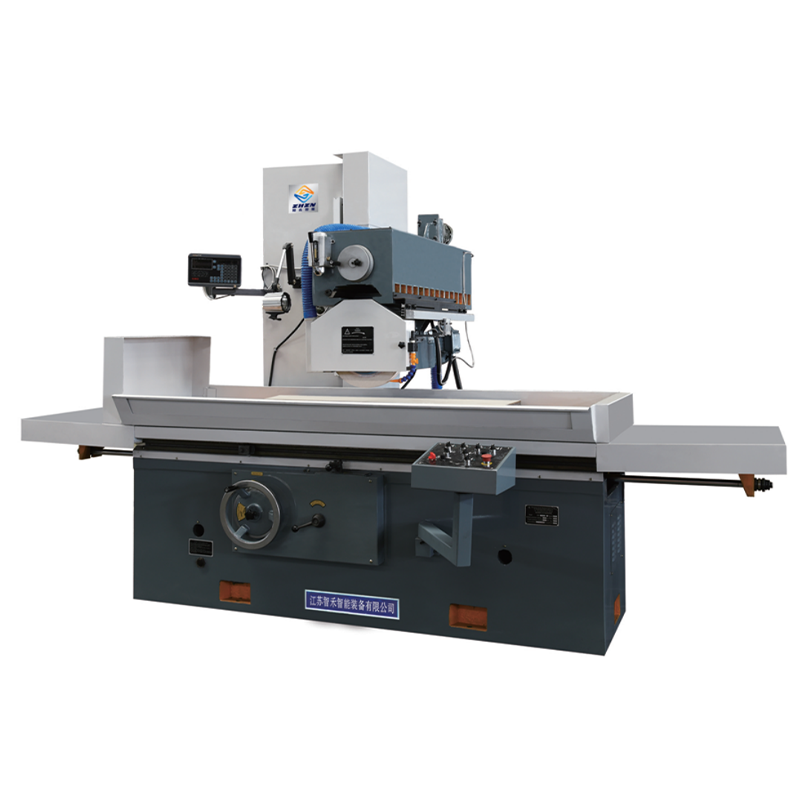

The M7150/M7160/M7163 Heavy Cut Duty Surface Grinder is a high-performance machining solution engineered by Jiangsu Zhihe Intelligent Equipment Co., Ltd. Designed for heavy-duty material removal and high-precision surface grinding, this horizontal spindle and reciprocating table grinder stands out in processing hardened workpieces (up to HRC62 hardness) with exceptional efficiency and stability. Whether for continuous long-duration grinding or precision finishing, it outperforms conventional machines, making it a reliable choice for industries demanding strict surface quality and machining durability. With multiple models (M7163×20/16/1250 and M7150×20/16/1250) to suit different workpiece sizes, it offers versatility without compromising on power.
Key Features
Superior Grinding Performance for Hardened Workpieces
Enables continuous grinding of HRC62 hardness workpieces for over 2 hours with a Z-axis feed of 0.2mm, eliminating the need for frequent wheel dressing—saving time and boosting productivity.
Delivers superior surface finish (R0.63μm) that exceeds industry standards, ensuring precision for critical components.
High-Precision Spindle & Transmission System
Grinding wheel spindle adopts an imported precision rolling bearing sleeve structure, guaranteeing high rotational accuracy and powerful cutting capabilities.
Grinding head’s lateral movement is driven by an AC motor and precision ball screw, supporting both automatic operation and manual control for groove grinding tasks.
Rigid & Stable Machine Structure
Square carriage with dense internal ribs enhances structural rigidity, minimizing vibration during heavy cutting and ensuring consistent machining quality.
Maintenance-free spindle design reduces downtime and operational costs, optimizing long-term usability.
User-Friendly Operation & Versatility
Vertical movement of the grinding head (by handwheel) offers precise control: 0.01mm per graduation and 1mm per revolution, enabling micro-adjustments for complex tasks.
Multiple model options with varying worktable sizes (1250×500mm to 2000×630mm) cater to diverse workpiece dimensions, from small precision parts to large components.
Detailed Specifications
Description | Unit | M7163×20 | M7150×20 | M7163×16 |
Size of worktable (L×W×H) | mm | 2000×630×600 | 2000×500×600 | 1600×630×600 |
Max. Longitudinal movement of worktable | mm | 2100 | 2100 | 1700 |
Max. Distance from spindle centerline to worktable surface | mm | 800 | 800 | 800 |
Max. Cross movement of grinding head | mm | 680 | 550 | 680 |
Vertical movement (per graduation) | mm | 0.01 | 0.01 | 0.01 |
Vertical movement (per revolution) | mm | 1 | 1 | 1 |
Rapid lifting motor power | Kw | 0.37 | 0.37 | 0.37 |
Rapid lifting motor speed | r/min | 1440 | 1440 | 1440 |
Abrasive wheel dim (D×d×w) | mm | φ400×50×203 | φ400×50×203 | φ400×50×203 |
Speed of grinding wheel | r/min | 1440 | 1440 | 1440 |
Total power of motor | Kw | 15.5 | 15.5 | 15.5 |
Power of spindle motor | Kw | 9 | 9 | 9 |
Power of oil pump motor | Kw | 5.5 | 5.5 | 5.5 |
Parallelism (Workpiece Surface to Base level) | mm | 300:0.008 | 300:0.008 | 300:0.008 |
Surface roughness | μm | Ra:0.63 | Ra:0.63 | Ra:0.63 |
N/G weight | Kg | 7800/8500 | 7000/7800 | 6500/7500 |
Package (L×W×H) | mm | 5300×1850×2350 | 5100×1850×2350 | 4800×1850×2350 |
Description | Unit | M7150×16 | M7163×1250 | M7150×1250 |
Size of worktable (L×W×H) | mm | 1600×500×600 | 1250×630×600 | 1250×500×600 |
Max. Longitudinal movement of worktable | mm | 1700 | 1350 | 1350 |
Max. Distance from spindle centerline to worktable surface | mm | 800 | 800 | 800 |
Max. Cross movement of grinding head | mm | 550 | 680 | 550 |
Vertical movement (per graduation) | mm | 0.01 | 0.01 | 0.01 |
Vertical movement (per revolution) | mm | 1 | 1 | 1 |
Rapid lifting motor power | Kw | 0.37 | 0.37 | 0.37 |
Rapid lifting motor speed | r/min | 1440 | 1440 | 1440 |
Abrasive wheel dim (D×d×w) | mm | φ400×50×203 | φ400×50×203 | φ400×50×203 |
Speed of grinding wheel | r/min | 1440 | 1440 | 1440 |
Total power of motor | Kw | 15.5 | 14 | 14 |
Power of spindle motor | Kw | 9 | 9 | 9 |
Power of oil pump motor | Kw | 5.5 | 4 | 4 |
Parallelism (Workpiece Surface to Base level) | mm | 300:0.008 | 300:0.008 | 300:0.008 |
Surface roughness | μm | Ra:0.63 | Ra:0.63 | Ra:0.63 |
N/G weight | Kg | 6000/6900 | 5800/6500 | 5300/6000 |
Package (L×W×H) | mm | 4600×1850×2350 | 3800×1950×2480 | 3600×1930×2480 |
Application Scenarios
Mold & Die Industry
Ideal for grinding hardened mold bases, cavities, and cores (HRC62), ensuring tight tolerances and smooth surfaces critical for mold performance.
Automotive Manufacturing
Processes engine components, gear parts, and chassis components that require heavy-duty material removal and high-precision finishing.
Aerospace Components
Suitable for grinding high-strength alloy parts (e.g., titanium, steel alloys) used in aircraft, where stability and precision are non-negotiable.
Precision Machinery Production
Grinds structural parts, guide rails, and tooling for industrial machinery, maintaining parallelism (300:0.008mm) and surface quality.
FAQ
Can this grinder handle continuous operation without wheel dressing?
Yes! The M7150/M7160/M7163 Heavy Cut Duty Surface Grinder can grind HRC62 hardened workpieces continuously for over 2 hours with a 0.2mm Z-axis feed, no wheel dressing required—significantly improving efficiency.
What is the maximum workpiece size it can accommodate?
The largest model (M7163×20) features a 2000×630×600mm worktable, supporting large workpieces up to 2000mm in length. Smaller models (e.g., M7150×1250) suit compact components.
Is manual operation possible for specialized tasks?
Absolutely. The grinding head’s lateral movement supports manual operation, making it perfect for groove grinding and other custom machining needs.
