Product Overview

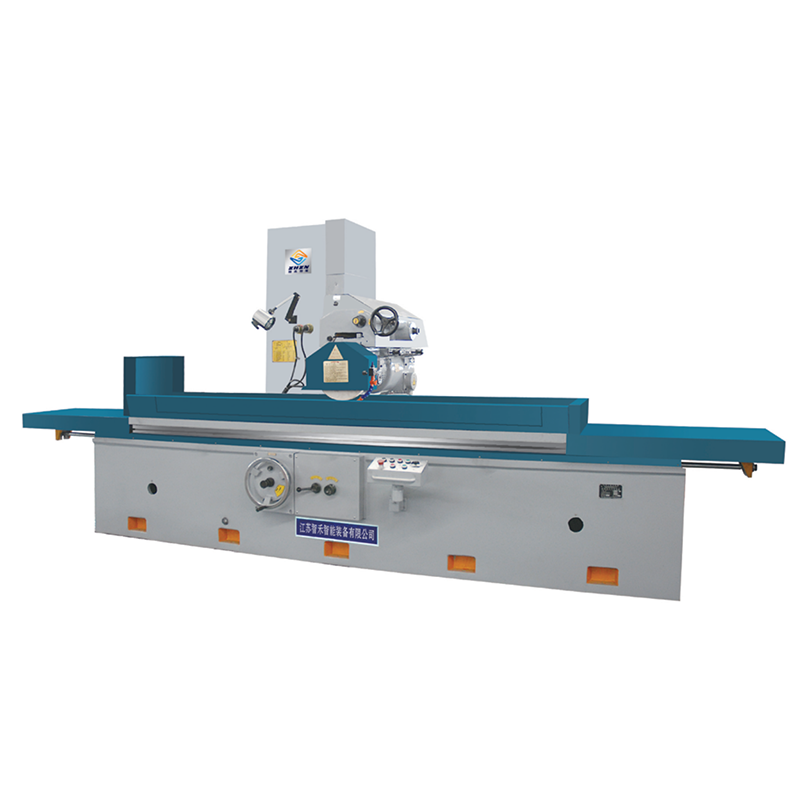

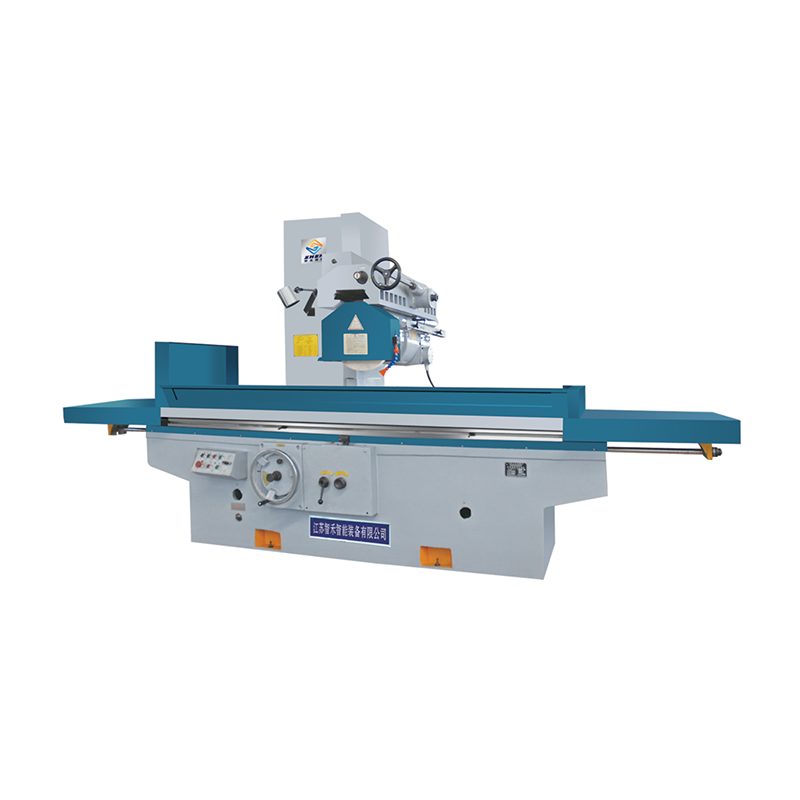

The M7150/M7160/M7163 Head Movable Surface Grinder is a high-performance horizontal spindle and reciprocating table grinder designed for large-scale precision machining. Focusing on 2000mm worktable length (all models), this series—including M7163×20, M7160×20, and M7150×20—combines innovative design with robust functionality. Key highlights include a conical-cylindrical plain bearing spindle for extended service life, a built-in motor structure for compactness and rigidity, and hydraulic stepless speed regulation for smooth operation. Ideal for industries requiring high-precision grinding of large workpieces, this grinder delivers consistent results, efficiency, and durability, making it a top choice for machine tool manufacturers, heavy machinery producers, and aerospace suppliers.
Key Features
Durable Conical-Cylindrical Plain Bearing Spindle
The spindle nose adopts a special plain bearing design (external conical, internal cylindrical), which reduces friction, minimizes wear, and extends the spindle’s service life. This structure ensures stable rotation even during long-term operation, maintaining precision and reducing maintenance downtime.
Compact Built-In Motor Structure
The motor is integrated into the grinder’s frame, resulting in a compact design that saves floor space while enhancing structural rigidity. This integration reduces vibration during grinding, improving surface finish and dimensional accuracy of workpieces.
Hydraulic Stepless Speed Regulation
The worktable’s longitudinal movement and the grinding head’s cross movement are powered by a hydraulic system, offering stepless speed adjustment. This allows operators to tailor the grinding speed to different materials and workpiece requirements, ensuring flexibility and efficiency.
Consistent High-Precision Performance
All models feature a vertical movement precision of 0.01mm per graduation (1mm per revolution), a workpiece surface parallelism of 300:0.008mm, and a surface roughness of Ra:0.63μm. This consistent precision meets the demands of high-end manufacturing industries.
Optimized 2000mm Worktable Design
The 2000mm-long worktable (width: 500mm to 630mm) accommodates large workpieces while maintaining stability. The maximum cross movement of the grinding head (550mm to 680mm) covers the entire worktable width, ensuring uniform grinding across large surfaces.
Powerful & Efficient Motor Configuration
With a total motor power of 17Kw, a 11Kw spindle motor, and a 5.5Kw oil pump motor, the series delivers strong grinding force for high-hardness materials. The 1440r/min grinding wheel speed (Φ400×40×127mm wheel) ensures efficient material removal and consistent results.
Detailed Specifications
Description | Unit | M7163×20 | M7160×20 | M7150×20 |
Size of worktable (L×W×H) | mm | 2000×630×600 | 2000×600×600 | 2000×500×600 |
Max. Longitudinal movement of worktable | mm | 2100 | 2100 | 2100 |
Max. Distance from spindle centerline to worktable surface | mm | 800 | 800 | 800 |
Max. Cross movement of grinding head | mm | 680 | 650 | 550 |
Vertical movement of grinding head (per graduation) | mm | 0.01 | 0.01 | 0.01 |
Vertical movement of grinding head (per revolution) | mm | 1 | 1 | 1 |
Rapid lifting motor power | Kw | 0.37 | 0.37 | 0.37 |
Rapid lifting motor speed | r/min | 1440 | 1440 | 1440 |
Abrasive wheel dimension (D×d×w) | mm | Φ400×40×127 | Φ400×40×127 | Φ400×40×127 |
Speed of grinding wheel | r/min | 1440 | 1440 | 1440 |
Total power of motor | Kw | 17 | 17 | 17 |
Power of spindle motor | Kw | 11 | 11 | 11 |
Power of oil pump motor | Kw | 5.5 | 5.5 | 5.5 |
Parallelism of workpiece surface to base level | mm | 300:0.008 | 300:0.008 | 300:0.008 |
Surface roughness | μm | Ra:0.63 | Ra:0.63 | Ra:0.63 |
N/G weight | Kg | 7800/8500 | 7500/8200 | 7000/7800 |
Package (L×W×H) | mm | 5300×1850×2350 | 5300×1850×2350 | 5100×1850×2350 |
Application Scenarios
Large-Scale Mold Manufacturing
Perfect for grinding large injection molds, blow molds, and die-casting molds. The M7163×20 model, with its 630mm worktable width and 680mm cross movement, handles wide mold surfaces, ensuring uniform finish and precision.
Machine Tool Bed Processing
Grinds the flat surfaces of machine tool beds, columns, and slides. The grinder’s high parallelism (300:0.008mm) ensures the bed’s flatness, which is critical for the accuracy of the entire machine tool.
Heavy-Duty Machinery Components
Processes large parts of construction machinery, mining equipment, and agricultural machinery—such as excavator bases and tractor frames. The hydraulic stepless speed regulation adapts to different material thicknesses, improving processing efficiency.
Aerospace & Defense Parts
Meets the strict precision requirements of aerospace components such as aircraft engine parts and structural frames. The stable spindle design and high surface finish (Ra:0.63μm) ensure compliance with aerospace industry standards.
FAQ
What is the advantage of the conical-cylindrical plain bearing spindle?
This special bearing design reduces friction and wear, extending the spindle’s service life by up to 30% compared to standard bearings. It also maintains stable rotation, ensuring consistent grinding precision even during long shifts.
Can the worktable speed be adjusted for different materials?
Yes. The hydraulic stepless speed regulation allows for smooth adjustment of the worktable’s longitudinal movement speed, making it suitable for grinding soft materials (e.g., aluminum) and hard materials (e.g., alloy steel).
What is the maximum workpiece weight the M7163×20 can support?
With a gross weight of 8500Kg and a robust worktable design, the M7163×20 can safely support workpieces weighing up to 5000Kg, making it ideal for heavy-duty applications.
Is technical support available for installation and maintenance?
Absolutely. Our team provides full technical support, including on-site installation guidance, maintenance training, and spare parts supply. We ensure your grinder operates at peak performance for years.
