Product Overview

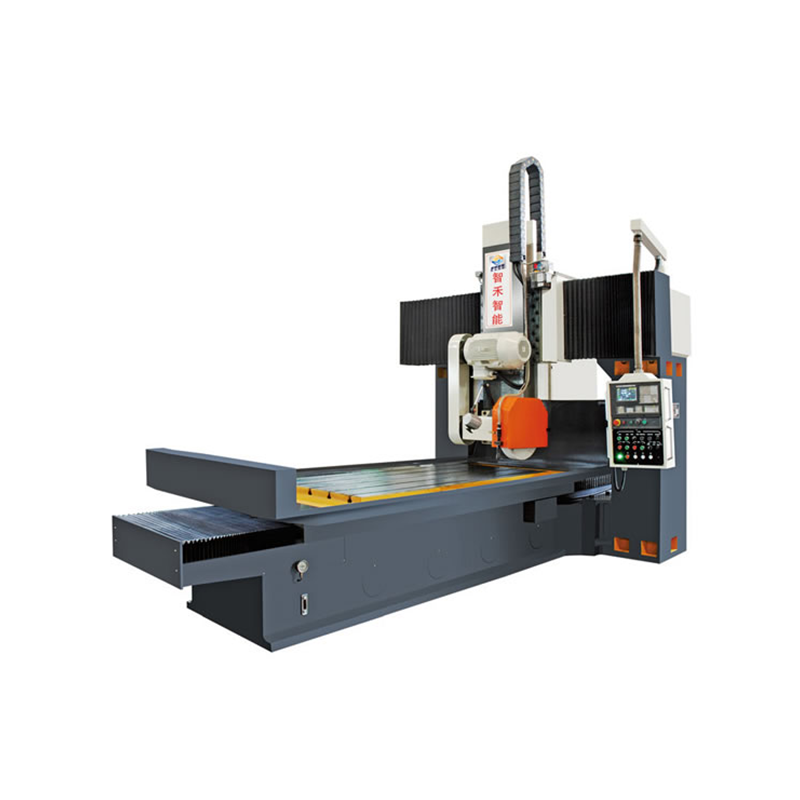

The CNC-controlled Fixed-beam Guideway Grinder is a high-precision gantry-type machining equipment designed f
or demanding precision machining needs. Developed by Jiangsu Zhihe Intelligent Equipment Co., Ltd., this series (models: MK2010A/3010A/3012A/4012A/MK3016A/6016A/8020A) integrates advanced CNC technology and robust mechanical structure, specializing in grinding planes and rail surfaces of steel, cast iron, and non-ferrous metals. With a stepped Gantry layout, the machine delivers exceptional dynamic stiffness during worktable and carriage movements,
ensuring consistent precision even in high-intensity machining scenarios. It is an indispensable tool for machine tool manufacturing, machining, and mold industries, where accuracy and reliability are critical.
Key Features
Stepped Gantry Rigid Frame
The machine adopts a rigid frame composed of a heavy-duty bed, stable columns, and a reinforced Crossbeam. This structural design provides sufficient dynamic stiffness, minimizing vibration during high-speed movements and guaranteeing machining accuracy. Whether the worktable is moving longitudinally or the carriage is sliding horizontally, the frame maintains stability to avoid deformation.
Flexible CNC & Hydraulic Control
Horizontal movement of the carriage and vertical movement of the slide are fully controlled by CNC, enabling precise positioning and feed adjustments.
The worktable’s longitudinal movement is driven by a hydraulic automatic speed control system, with a speed range of 5~25 m/min. This ensures smooth, efficient movement tailored to different machining requirements.
High Precision Machining Capabilities
Minimum vertical feed of 0.005 mm, supporting ultra-fine precision grinding for critical surfaces like rail surfaces and precision planes.
Consistent spindle performance with optimized grinding wheel size (Φ500 × 75/100/150 × Φ203 mm) ensures uniform material removal and superior surface finish.
Wide Workpiece Compatibility
With maximum grinding workpiece sizes ranging from 2000×1200×600(800) mm to 8000×2200×800 mm, the series accommodates small to large-scale workpieces. The worktable maximum load weight (including magnetic chuck) reaches up to 30,000 kg, meeting the needs of heavy-duty machining tasks.
Detailed Specifications
| Item | Unit | MK2010A | MK3010A | MK3012A |
| The largest grinding workpiece size (L×W×H) | mm | 2000×1200×600(800) | 3000×1200×600(800) | 3000×1400×600(800) |
| Working mesa size (L×W) | mm | 2000×1000 | 3000×1000 | 3000×1200 |
| Table longitudinal range | mm | 2100 | 3100 | 3100 |
| Gantry column spacing | mm | 1600 | 1600 | 1600 |
| Peripheral grinding head spindle center distance to mesa - Most | mm | 850 | 850 | 850 |
| Peripheral grinding head spindle center distance to mesa - Least | mm | 200 | 200 | 200 |
| Tablez longitudinal movement speed (Hydraulic automatic speed control) | m/min | 5~25 | 5~25 | 5~25 |
| Workbench maximum load weight (including magnetic chuck) | kg | 4000 | 5000 | 6000 |
| Motor power | kw | 15 | 15 | 15 |
| Grinding wheel size (diameter × width × inside diameter) | mm | Φ500×75×Φ203 | Φ500×75×Φ203 | Φ500×75×Φ203 |
| Vertical distance | mm | 650 | 650 | 650 |
| Minimum vertical feed | mm | 0.005 | 0.005 | 0.005 |
| Intermittent feeding | mm | 1~35/times (any) | 1~35/times (any) | 1~35/times (any) |
| Total capacity of electrical equipment | kw | About 35 | About 35 | About 36 |
| Machine tool appearance size (L×W×H) | mm | About 6000×3500×4000 | About 8500×3500×4000 | About 8500×4300×4200 |
| Machine weight | T | About 20 | About 25 | About 28 |
| Item | Unit | MK3016A | MK6016A | MK8020A |
| The largest grinding workpiece size (L×W×H) | mm | 3000×1800×800 | 6000×1800×800 | 8000×2200×800 |
| Working mesa size (L×W) | mm | 3000×1600 | 6000×1600 | 8000×2000 |
| Table longitudinal range | mm | 3100 | 6100 | 8100 |
| Gantry column spacing | mm | 2100 | 2100 | 2500 |
| Peripheral grinding head spindle center distance to mesa - Most | mm | 1050 | 1050 | 1050 |
| Peripheral grinding head spindle center distance to mesa - Least | mm | 200 | 200 | 200 |
| Tablez longitudinal movement speed (Hydraulic automatic speed control) | m/min | 5~25 | 5~25 | 5~25 |
| Workbench maximum load weight (including magnetic chuck) | kg | 7500 | 15000 | 30000 |
| Motor power | kw | 18.5 | 18.5 | 22 |
| Grinding wheel size (diameter × width × inside diameter) | mm | Φ500×100×Φ203 | Φ500×100×Φ203 | Φ500×150×Φ203 |
| Vertical distance | mm | 850 | 850 | 850 |
| Minimum vertical feed | mm | 0.005 | 0.005 | 0.005 |
| Intermittent feeding | mm | 1~35/times (any) | 1~35/times (any) | 1~35/times (any) |
| Total capacity of electrical equipment | kw | About 45 | About 50 | About 50 |
| Machine tool appearance size (L×W×H) | mm | About 8500×5000×5000 | About 17000×5000×5200 | About 23000×5500×5400 |
| Machine weight | T | About 34.5 | About 53 | About 90 |
| Item | Unit | MK4012A |
| The largest grinding workpiece size (L×W×H) | mm | 4000×1400×600(800) |
| Working mesa size (L×W) | mm | 4000×1200 |
| Table longitudinal range | mm | 4100 |
| Gantry column spacing | mm | 1600 |
| Peripheral grinding head spindle center distance to mesa - Most | mm | 850 |
| Peripheral grinding head spindle center distance to mesa - Least | mm | 200 |
| Tablez longitudinal movement speed (Hydraulic automatic speed control) | m/min | 5~25 |
| Workbench maximum load weight (including magnetic chuck) | kg | 8000 |
| Motor power | kw | 18.5 |
| Grinding wheel size (diameter × width × inside diameter) | mm | Φ500×100×Φ203 |
| Vertical distance | mm | 650 |
| Minimum vertical feed | mm | 0.005 |
| Intermittent feeding | mm | 1~35/times (any) |
| Total capacity of electrical equipment | kw | About 42 |
| Machine tool appearance size (L×W×H) | mm | About 12500×4300×4200 |
| Machine weight | T | About 30 |
Application Scenarios
Machine Tool Manufacturing Industry
Ideal for precision grinding of machine tool guideways, beds, and columns. The machine’s high stiffness and CNC precision ensure that critical components meet strict dimensional and surface quality requirements, enhancing the overall performance of finished machine tools.
Machining Industry
Suitable for processing large and medium-sized steel and cast iron workpieces, such as industrial machine bases, mechanical arms, and structural parts. It efficiently grinds plane and rail surfaces, improving workpiece flatness and parallelism for assembly accuracy.
Mold Industry
Used for grinding mold bases, cavities, and precision inserts made of non-ferrous metals and alloy steels. The ultra-fine minimum feed (0.005 mm) and stable grinding process guarantee the mold’s dimensional accuracy and surface finish, extending mold service life.
FAQ
What materials can this CNC guideway grinder process?
It is designed to grind steel, cast iron, and non-ferrous metals, covering most common materials in machining and manufacturing industries.
What is the maximum workpiece size this series can handle?
The largest model (MK8020A) supports workpieces up to 8000×2200×800 mm, while smaller models (e.g., MK2010A) accommodate 2000×1200×600(800) mm workpieces. Choose the model based on your specific production needs.
How is the worktable movement controlled?
The worktable’s longitudinal movement is driven by a hydraulic automatic speed control system (5~25 m/min), ensuring smooth and adjustable movement. Horizontal and vertical movements of the carriage and slide are controlled by CNC for precise positioning.
What is the minimum vertical feed rate?
The minimum vertical feed is 0.005 mm, enabling ultra-precision grinding for high-demand applications like mold making and machine tool component processing.
