Product Overview

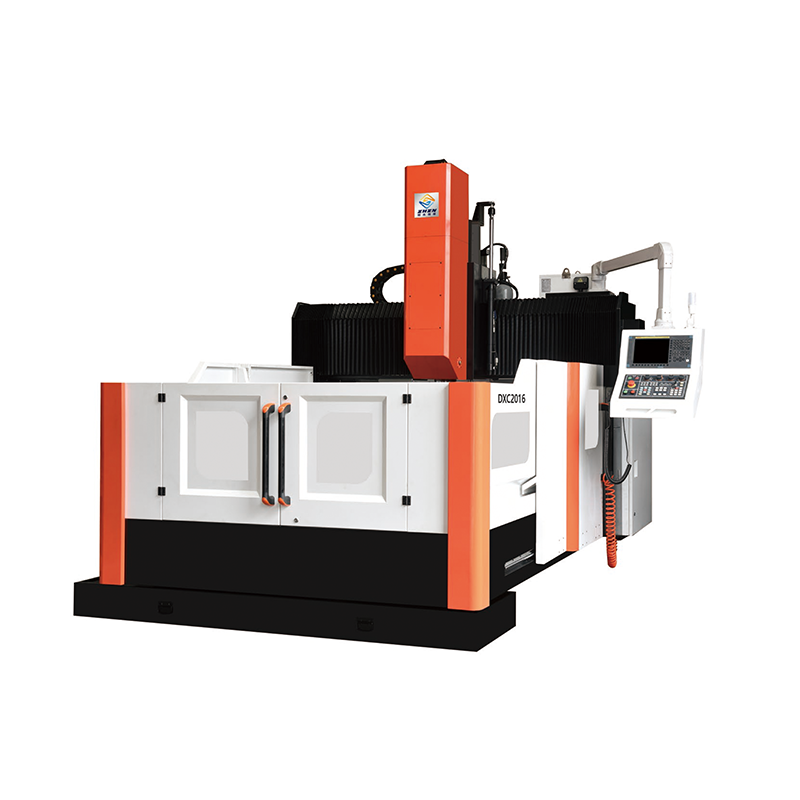

The DXC16 Series CNC Gantry Machining Center is a high-performance fixed-beam machining solution designed to meet the diverse needs of modern mechanical processing. Integrating milling, boring, drilling (drilling, expanding, reaming), tapping, countersinking, and other core machining functions, this series stands out for its versatility and reliability. With leading technical indicators and mature product structure in China, the DXC16 Series delivers stable quality, large machine torque, and excellent fast response characteristics. Whether for small-batch customization or mass production, it provides cost-effective solutions by supporting customizable configurations such as full closed-loop grating ruler precision feedback systems and 4-axis linkage machining, making it a preferred choice for industries requiring high-precision and efficient processing.
Key Features
Versatile Machining Capabilities
Equipped with comprehensive processing functions, the DXC16 Series handles multiple operations in one setup, eliminating the need for frequent machine tool changes and significantly improving production efficiency. From basic milling to complex tapping and countersinking, it covers all core needs of mechanical processing.
Customizable High-End Configurations
Tailor the machine to your specific requirements with optional advanced features: full closed-loop grating ruler precision feedback system for enhanced accuracy, tool center cooling function for stable cutting performance, ATC manipulator tool library for automated tool changes, automatic workpiece/tool measurement, and 4-axis linkage machining for complex part processing.
Superior Stability & Durability
Built with a mature product structure and rigorous manufacturing processes, the DXC16 Series ensures long-term stable operation even under heavy-load conditions. Its robust frame design minimizes vibration during high-speed machining, while the high-quality components guarantee durability and low maintenance costs.
High Precision & Repeatability
Boasting a positioning accuracy of 0.008 mm/1000 and repeatability of 0.015 mm/1000, the series delivers consistent precision for critical parts. The BT50 spindle taper and Φ190 spindle diameter further enhance machining stability and accuracy, meeting the strict requirements of high-precision industries.
Efficient Performance
With X/Y/Z fast moving speeds of 12/12/10 m/min and a spindle speed range of 10~6000 rpm, the DXC16 Series reduces non-processing time and boosts overall productivity. The optional belt/gearbox/direct drive modes allow for flexible adjustment based on different processing scenarios.
Detailed Specifications
Item | Unit | DXC2016 | DXC2516 | DXC3016 |
Maximum bearing capacity | kg | 4000 | 5000 | 6000 |
X/Y/Z stroke | mm | 2000×1700×600(800) | 2500×1700×600(800) | 3000×1700×600(800) |
Gantry width | mm | 1620 | 1620 | 1620 |
Table size | mm | 2000×1200 | 2500×1200 | 3000×1200 |
Number of T-slots | No. | 7 | 7 | 7 |
T-slot dimensions/spacing | mm | 22×175 | 22×175 | 22×175 |
Drive mode (optional) | - | Belt/Gearbox/Direct Drive | Belt/Gearbox/Direct Drive | Belt/Gearbox/Direct Drive |
Spindle speed | rpm | 10~6000 | 10~6000 | 10~6000 |
Main motor power | kw | 15/18.5 | 15/18.5 | 15/18.5 |
Spindle nose to work table | mm | 200~1000 | 200~1000 | 200~1000 |
Spindle taper and specification | - | BT50 | BT50 | BT50 |
Spindle diameter | mm | Φ190 | Φ190 | Φ190 |
Stud size | - | P50T-MAS1~G | P50T-MAS1~G | P50T-MAS1~G |
X/Y/Z fast moving speed | m/min | 12/12/10 | 12/12/10 | 12/12/10 |
X/Y rail (roller) | mm | 55(X) 55(Y) | 55(X) 55(Y) | 55(X) 55(Y) |
X/Y/Z axis ball screw diameter | mm | 50/50/50 | 50/50/50 | 63/50/50 |
Positioning accuracy | mm | 0.008/1000 | 0.008/1000 | 0.008/1000 |
Repeatability | mm | 0.015/1000 | 0.015/1000 | 0.015/1000 |
Tool library (select configuration) | - | 24-tool robot magazine | 24-tool robot magazine | 24-tool robot magazine |
Numerical control system | - | FANUC/Mitsubishi | FANUC/Mitsubishi | FANUC/Mitsubishi |
Machine weight | T | 20 | 22 | 25 |
Application Scenarios
Automotive Industry
Ideal for processing automotive components such as engine blocks, chassis parts, and transmission housings. The high torque and precision ensure consistent quality for mass-produced automotive parts.
Mold Manufacturing
Suitable for machining large and complex molds (e.g., injection molds, stamping molds). The 4-axis linkage option and stable performance enable efficient processing of mold cavities and cores.
Aerospace Industry
Meets the strict precision requirements of aerospace parts, such as aircraft structural components and engine parts. The full closed-loop grating ruler system ensures ultra-high accuracy for critical aerospace applications.
Packaging Machinery
Processes key parts of packaging equipment, including rollers, frames, and cutting components. The versatile machining functions adapt to the diverse needs of packaging machinery manufacturing.
Hardware & General Machinery
Handles a wide range of hardware products and general mechanical parts, from small precision components to large structural parts, providing flexible and efficient processing solutions.
FAQ
What machining materials are compatible with the DXC16 Series?
The series supports processing of various materials, including steel, aluminum alloy, copper, cast iron, and non-ferrous metals. Its powerful main motor and stable spindle performance ensure efficient cutting of both soft and hard materials.
Can I upgrade the machine to 4-axis linkage machining after purchase?
Yes, 4-axis linkage machining is an optional configuration that can be customized during purchase or upgraded later. Contact our technical team for detailed upgrade plans and compatibility confirmation.
What maintenance is required for the CNC gantry machining center?
Regular maintenance includes checking lubrication systems, cleaning the worktable and spindle, inspecting ball screws and rails for wear, and updating the CNC system software. We provide a detailed operation manual and technical support to guide routine maintenance.
Is training provided for operating the machine?
Yes, we offer free on-site training for operators and maintenance personnel. The training covers machine operation, programming, basic troubleshooting, and maintenance skills to ensure smooth use of the equipment.
