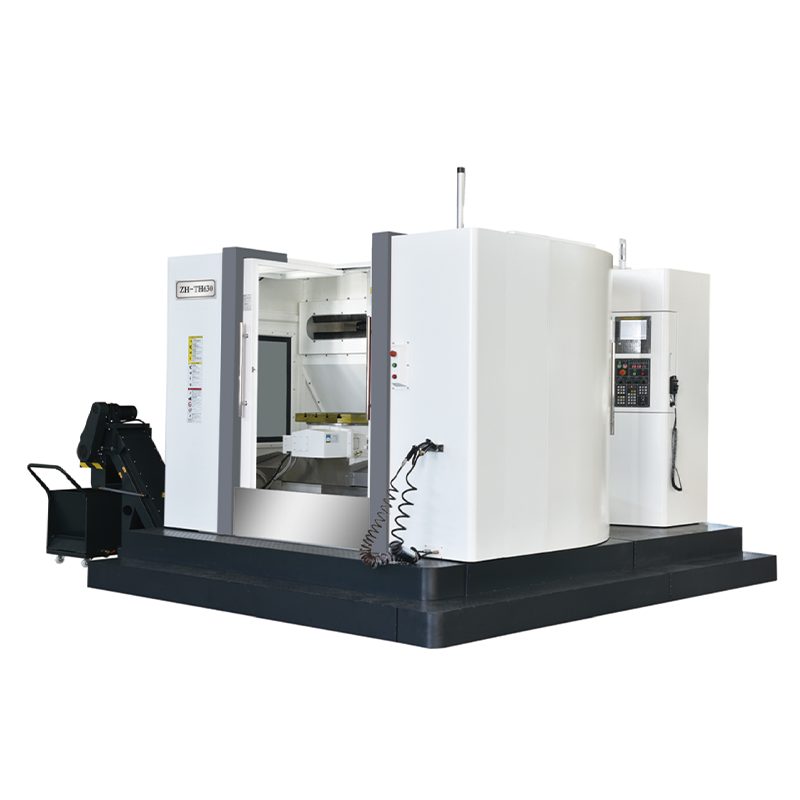

Product Overview
With advanced structural designs—such as Inverted "T" structure, Positive "T" structure, and Portal structure—this series combines stability, flexibility, and efficiency to meet the demands of modern manufacturing. Whether equipped with a standard single workbench or an optional exchangeable double workbench, these machines deliver exceptional performance in precision positioning, load-bearing capacity, and motion control, making them ideal for industries requiring high-quality machining of medium to large-sized workpieces.
Key Features
Robust Structural Design
Each model in the ZH-TH/ZH-W series features a specialized frame structure (Inverted "T", Positive "T", or Portal) that enhances rigidity and vibration resistance. This design ensures stable operation even during high-speed cutting and heavy-load processing, laying the foundation for consistent machining accuracy.
Superior Precision Performance
Boasting a positioning accuracy of ±0.005/300 mm and repeated positioning accuracy of ±0.003/300 mm (for ZH-TH models) or ±0.008/300 mm and ±0.005/300 mm (for ZH-W models), these horizontal machining centers guarantee ultra-precise part production. The 1×360° (1×0.001° optional) table rotation further supports multi-angle processing needs.
Flexible Workbench Configuration
The ZH-TH500 offers an optional exchangeable double workbench for continuous production, while other models come with a stable single workbench. Table sizes range from 500×500 mm to 2000×900 mm, with maximum load capacities up to 1800 kg, accommodating diverse workpiece sizes and weights.
Powerful Spindle System
Equipped with a BT50/Φ190 taper spindle and a 15-18.5 kw spindle drive motor, the series delivers a maximum spindle speed of 6000 rpm. This powerful combination ensures efficient cutting of various materials, from aluminum to high-strength steel, while the center water cooling function extends tool life.
Efficient Motion Control
The three-axis cutting feed rate reaches 1015000 mm/min (ZH-TH models) or 1010000 mm/min (ZH-W models), with fast moving speeds of 30 m/min (ZH-TH) and 16 m/min (ZH-W) for X/Y/Z axes. This enables quick traverse and precise feed, significantly reducing cycle times.
Detailed Specifications
Item | Unit | ZH-TH500 | ZH-TH630 | ZH-TH800 |
Table size | mm | 500×500 | 630×630 | 800×800 |
Number of tables | - | Single (double optional) | 1 | 1 |
Table rotation | ° | 1×360 (1×0.001 optional) | 1×360 (1×0.001 optional) | 1×360 (1×0.001 optional) |
Maximum load | kg | 600 | 1000 | 1200 |
X/Y/Z axis travel | mm | 900/750/650 | 1000/850/750 | 1190/1020/1050 |
Spindle center to work surface | mm | 250~1000 | 110~960 | 152~1172 |
Taper specification | - | BT50/Φ190 | BT50/Φ190 | BT50/Φ190 |
Table T-slot (Number×size×spacing) | mm | 5×14×100 | 5×18×100 | 9×22×100 |
Maximum spindle speed | rpm | 6000 | 6000 | 6000 |
Three-axis cutting feed rate | mm/min | 10~15000 | 10~15000 | 10~15000 |
Positioning accuracy | mm | ±0.005/300 | ±0.005/300 | ±0.005/300 |
Machine weight (approx.) | T | 8 | 10 | 14 |
Item | Unit | ZH-W1075 | ZH-W1814 |
Table size | mm | 1300×600 | 2000×900 |
Number of tables | - | 1 | 1 |
Table rotation | ° | 1×360 (1×0.001 optional) | 1×360 (1×0.001 optional) |
Maximum load | kg | 1000 | 1800 |
X/Y/Z axis travel | mm | 1000/750/600 | 1800/1280/900 |
Spindle center to work surface | mm | 190~940 | 200~1100 |
Taper specification | - | BT50/Φ190 | BT50/Φ190 |
Table T-slot (Number×size×spacing) | mm | 5×18×120 | 5×18×165 |
Maximum spindle speed | rpm | 6000 | 6000 |
Three-axis cutting feed rate | mm/min | 10~10000 | 10~10000 |
Positioning accuracy | mm | ±0.008/300 | ±0.008/300 |
Machine weight (approx.) | T | 8 | 16 |
Application Scenarios
Automotive Manufacturing
Ideal for processing engine blocks, transmission cases, and chassis components, the ZH-TH/ZH-W series ensures high precision and efficiency, meeting the mass-production needs of the automotive industry.
Aerospace Component Processing
Suitable for machining complex structural parts, such as aircraft brackets and engine parts, where strict tolerance requirements and material strength demand a reliable horizontal machining center.
Precision Machinery Fabrication
Used in producing gears, shafts, and housings for industrial machinery, the series’ flexible workbench and high precision support diverse machining tasks.
Mold & Die Industry
The stable structure and precise motion control make these machines perfect for mold cavity machining, ensuring smooth surface finishes and accurate dimensions.
FAQ
What workbench options are available for the ZH-TH/ZH-W series?
The ZH-TH500 comes with a standard single workbench and an optional exchangeable double workbench for continuous operation. All other models (ZH-TH630, ZH-TH800, ZH-W1075, ZH-W1814) are equipped with a fixed single workbench.
What is the maximum workpiece weight these machines can handle?
The maximum load capacity ranges from 600 kg (ZH-TH500) to 1800 kg (ZH-W1814), covering a wide range of medium to heavy workpieces.
Can the tool storage capacity be customized?
Yes, the tool storage capacity is optional, with 24 or 32 tool positions available to meet different production requirements.
What is the floor space required for each model?
Floor area (length×width×height) varies: ZH-TH500 (4280×3000×2600 mm), ZH-TH630 (5900×3500×3563 mm), ZH-TH800 (7875×4600×3405 mm), ZH-W1075 (3400×2900×3100 mm), ZH-W1814 (4400×3500×3200 mm).
