Heavy-Duty Gantry Milling Machine

Product Overview

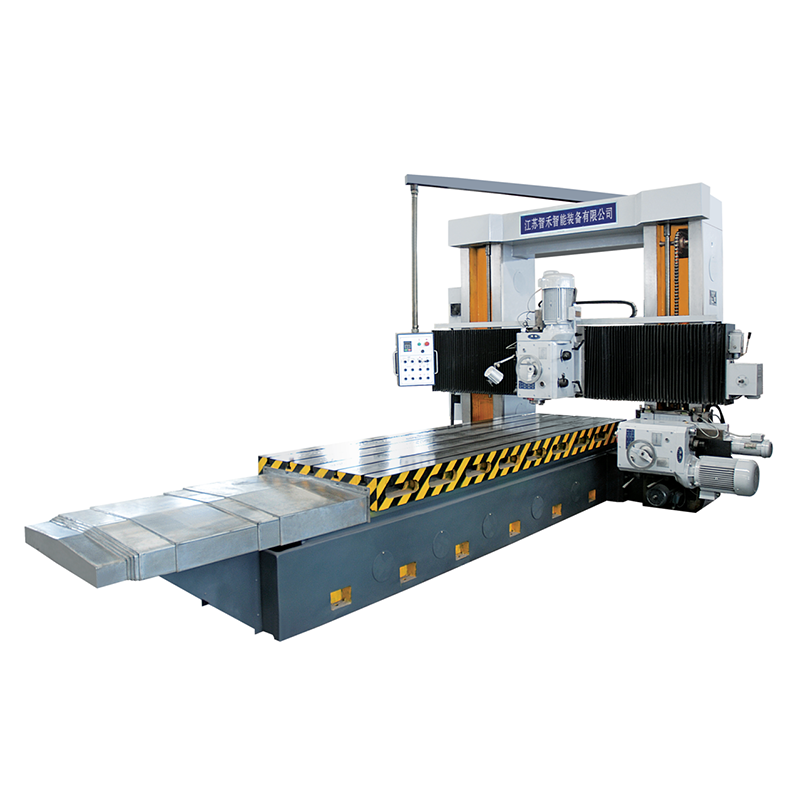

The X2020 Series Gantry Milling Machine (Models: X2020A/X2020B/X2020C) from Jiangsu Zhihe Intelligent Equipment Co., Ltd. is a flagship heavy-duty machining tool designed for high-performance processing of large workpieces. Engineered with powerful motor configurations and a rigid frame, this gantry milling machine excels in handling plane, bevel, and groove machining tasks with various milling cutters. Whether under heavy load or high-speed operation, it maintains exceptional stability and precision, making it an ideal choice for industries requiring reliable large-scale machining solutions.

Key Features

Robust Power & Performance

Equipped with high-output motors for the worktable feed, vertical milling head, and side milling head, the X2020 Series delivers consistent power for heavy-duty cutting. The vertical milling head (11 Kw) and side milling head (7.5 Kw) ensure efficient material removal, while the worktable feed motor (11-15 Kw) adapts to different machining demands across models.

Superior Machining Capacity

With maximum machining sizes ranging from 4000×2500×1300 mm (X2020A) to 8000×2500×1500 mm (X2020C), this heavy-duty gantry mill accommodates large workpieces with ease. The 2600 mm fixed distance between columns provides stable support for wide workpieces, while the 4000-8000×2000 mm worktable offers ample space for clamping and processing.

Stepless Speed Change & Precision Control

Featuring stepless step change for milling feed speed, the X2020 Series allows seamless adjustment to match different materials and cutting requirements. The vertical milling head spindle offers 9 speed levels (66-655 r/min) and the side milling head 6 levels (82-506 r/min), ensuring optimal cutting efficiency and surface finish.

Dual Milling Heads & T-Slot Design

Two integrated milling heads (vertical + side) enable multi-angle and multi-process machining in one setup, reducing workpiece repositioning and improving productivity. The worktable is equipped with 9 T-slots (28 mm width) for secure clamping of large or irregular workpieces, enhancing machining stability.

High Load-Bearing Capacity

With a maximum load capacity of 18,000-25,000 Kg and machine weight of 50,000-72,000 Kg, the X2020 Series is built to withstand heavy-duty operations without compromising precision. Its rigid structure minimizes vibration during high-speed cutting, ensuring consistent machining quality.

Detailed Specifications

Application Scenarios

Heavy Machinery Manufacturing

Ideal for processing large components such as machine bases, frames, and brackets. The X2020 Series’ large machining size and high load capacity handle heavy workpieces in construction machinery, mining equipment, and industrial machinery production.

Steel Structure Fabrication

Perfect for milling planes and grooves on steel beams, columns, and structural parts. Its rigid structure ensures precision even for thick-walled steel components used in bridges, buildings, and industrial facilities.

Mold & Tooling Production

Suitable for machining large molds, dies, and fixtures. The dual milling heads and adjustable speed settings enable precise cutting of complex surfaces and grooves, meeting the high-precision requirements of mold manufacturing.

Aerospace & Energy Equipment

Used for processing large parts in aerospace (e.g., aircraft frames) and energy industries (e.g., wind turbine components). The machine’s stability and power ensure consistent quality for critical, high-stress components.

FAQ

What materials can the X2020 Series Gantry Milling Machine process?

The machine is compatible with various materials, including carbon steel, alloy steel, cast iron, aluminum alloy, and non-ferrous metals. Its powerful motors and rigid structure support heavy cutting of hard materials.

Is the machine easy to operate for beginners?

Yes. The stepless speed change and intuitive controls simplify operation. We provide detailed user manuals and optional on-site training to ensure your team masters the machine quickly.

Can the machine be customized for specific machining needs?

Absolutely. We offer customization for worktable size, motor power, and additional accessories (e.g., digital readouts). Contact our team to discuss your unique requirements.

What is the maintenance cycle for the X2020 Series?

Routine maintenance (lubrication, cleaning, and inspection) is recommended every 500 operating hours. Major maintenance is required annually. We provide after-sales support and genuine spare parts for long-term reliability.

Does the machine come with a warranty?

Yes, we offer a 1-year warranty on the machine (excluding wear parts) and lifelong technical support. Our professional team is available to resolve any issues promptly.
