Product Overview

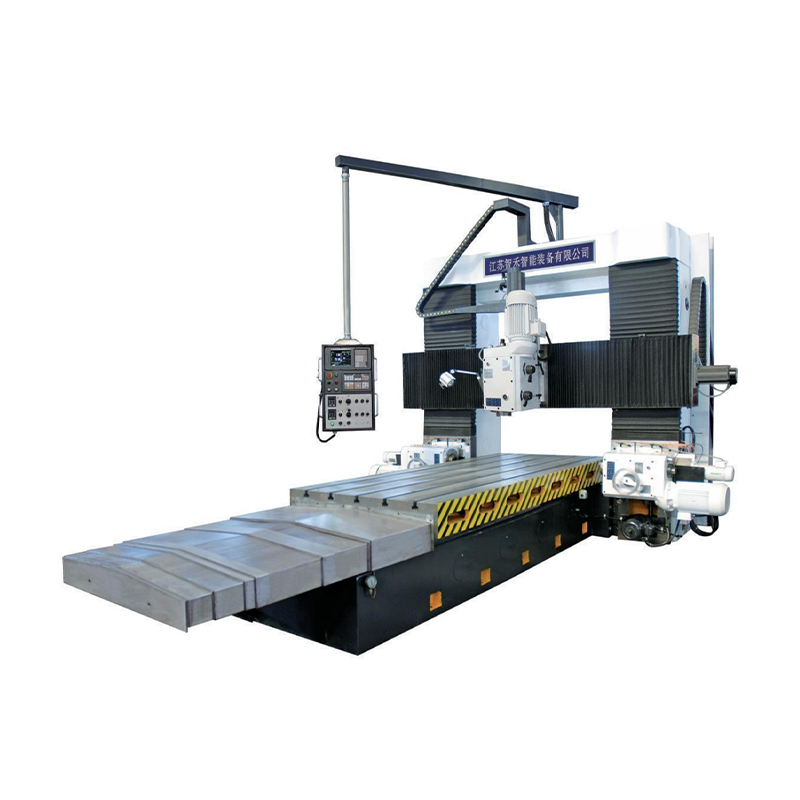

The Moving Beam CNC Gantry Milling Machine series (models XK2010/XK2010T/XK2012A/XK2016B/XK2016C/XK2020C) is a heavy-duty, high-precision machining solution designed for large-scale and complex components. Engineered with servo motor-driven axes, Taiwan high-precision screws, and a stable gantry structure, this machine eliminates low-speed stick-slip and delivers consistent, reliable performance across diverse industrial applications. From machining large mechanical frames to complex 3D curved parts, it combines versatility, power, and accuracy to meet the demands of machinery, automotive, shipbuilding, and textile printing industries. With user-friendly features such as electronic handwheels for micro-feeding, it ensures operational convenience while handling heavy workpieces with ease.
Key Features
Servo-Driven Axes & High-Precision Screws
Each axis (X/Y/Z) is driven by a high-torque servo motor, paired with Taiwan high-precision screws. This configuration ensures smooth, precise movement, eliminates low-speed stick-slip, and maintains positioning accuracy even during long-duration machining.
Stable & Heavy-Duty Structure
The moving beam gantry design and robust frame provide exceptional stability, supporting workpiece weights of up to 25000kg (XK2020C). The machine’s rigid construction minimizes vibration, ensuring consistent machining quality for large and heavy components.
Versatile Processing Capabilities
Capable of handling 2D and 3D curved components, the machine is a critical tool for diverse industries. It supports milling, drilling, and tapping operations, making it suitable for processing large frames, molds, and structural parts.
User-Friendly Operation
Equipped with electronic handwheels, the machine allows operators to easily find reference points and perform micro-feeding adjustments. The intuitive CNC/NC control system simplifies programming and operation, reducing setup time and operational errors.
Powerful Motor Configuration
Featuring high-power motors for the worktable, crossbeam, and milling heads, the machine delivers sufficient torque for heavy-duty cutting. The vertical side milling head power ranges from 7.5KW to 11KW, ensuring efficient material removal even for tough materials.
Detailed Specifications
Specification | Unit | XK2010 | XK2010T | XK2012A |
Max cutting length | mm | 2000 | 3000 | 3000 |
Distance between two columns | mm | 1300 | 1300 | 1500 |
Vertical movement | mm | 700 | 700 | 900 |
Size of worktable (L×W) | mm | 2000×1000 | 3000×1000 | 3000×1250 |
No of T-slots | - | 5 | 5 | 5 |
Width of T-slots | mm | 22 | 22 | 28 |
Servo motor power of worktable movement | KW | 5.5 | 5.5 | 5.5 |
Motor power of crossbeam vertical movement | KW | 2.2 | 2.2 | 2.2 |
Servo motor power of side milling head's cross movement | KW | 5.5 | 5.5 | 5.5 |
Power of vertical side milling head | KW | 7.5 | 7.5 | 7.5 |
Servo motor of vertical milling head lifting movement | KW | 4.7 | 4.7 | 4.7 |
Lifting motor power of side milling head | KW | 1.5 | 1.5 | 1.5 |
Speed of worktable | mm/min | 0~4000 | 0~4000 | 0~4000 |
Rapid cross movement speed of vertical milling head | mm/min | 0~4000 | 0~4000 | 0~4000 |
Milling head spindle speed | r/min | 82~505（6 level） | 82~505（6 level） | 82~505（6 level） |
Motor power of crossbeam's locking device | KW | 0.55 | 0.55 | 0.55 |
Max loading weight of the worktable | Kg | 5000 | 7000 | 10000 |
Machine weight | Kg | 15000 | 18000 | 25000 |
Machine dimension（L×W×H） | mm | 5500×3400×2800 | 7500×3400×2800 | 7800×3600×3000 |
Specification | Unit | XK2016B | XK2016C | XK2020C |
Max cutting length | mm | 4000 | 6000 | 8000 |
Distance between two columns | mm | 2000 | 2000 | 2500 |
Vertical movement | mm | 1100 | 1400 | 1400 |
Size of worktable (L×W) | mm | 4000×1600 | 6000×1600 | 8000×2000 |
No of T-slots | - | 7 | 7 | 9 |
Width of T-slots | mm | 28 | 28 | 28 |
Servo motor power of worktable movement | KW | 7.5 | 11 | 15 |
Motor power of crossbeam vertical movement | KW | 3.0 | 3.0 | 3.0 |
Servo motor power of side milling head's cross movement | KW | 5.5 | 5.5 | 5.5 |
Power of vertical side milling head | KW | 7.5 | 7.5 | 11/7.5 |
Servo motor of vertical milling head lifting movement | KW | 4.7 | 4.7 | 5.5 |
Lifting motor power of side milling head | KW | 1.5 | 1.5 | 1.5 |
Speed of worktable | mm/min | 0~4000 | 0~4000 | 0~4000 |
Rapid cross movement speed of vertical milling head | mm/min | 0~4000 | 0~4000 | 0~4000 |
Milling head spindle speed | r/min | 82~505（6 level） | 82~505（6 level） | 66655（9 level）/82505（6 level） |
Motor power of crossbeam's locking device | KW | 0.75 | 0.75 | 0.75 |
Max loading weight of the worktable | Kg | 12000 | 15000 | 25000 |
Machine weight | Kg | 32000 | 48000 | 72000 |
Machine dimension（L×W×H） | mm | 10000×4000×3200 | 14000×4000×3500 | 18000×4500×3500 |
Application Scenarios
Machinery Manufacturing Industry
Ideal for machining large machine tool beds, frames, and structural components. The machine’s heavy-duty load capacity and high precision meet the requirements of industrial machinery production.
Shipbuilding Industry
Suitable for processing ship hull structural parts, marine engine components, and deck equipment. The large worktable size and powerful cutting capabilities handle the oversized parts common in shipbuilding.
Automotive Manufacturing
Perfect for machining automotive frames, large stamping molds, and powertrain components. The machine’s stability and efficiency support high-volume production in the automotive sector.
Textile & Printing Machinery
Designed to process large frames, rollers, and precision components for textile and printing equipment. The versatile processing capabilities adapt to the complex shapes of these machinery parts.
FAQ
What is the maximum workpiece weight the machine can support?
The maximum worktable loading weight ranges from 5000kg (XK2010) to 25000kg (XK2020C), making it suitable for light to extra-heavy workpieces.
What is the spindle speed range for the milling head?
Most models offer a spindle speed range of 82~505 r/min (6 levels), while the XK2020C provides two options: 66655 r/min (9 levels) and 82505 r/min (6 levels) for enhanced versatility.
Does the machine support low-speed stable operation?
Yes, the servo motor-driven axes and high-precision screws eliminate low-speed stick-slip, ensuring smooth and precise movement even at low speeds.
How easy is it to adjust the machine for different workpieces?
The electronic handwheels allow for easy reference point alignment and micro-feeding adjustments, while the intuitive CNC/NC system simplifies programming, reducing setup time for new workpieces.
Call to Action
Upgrade your heavy-duty machining capabilities with the Moving Beam CNC Gantry Milling Machine series! Whether you need to process small large parts (XK2010) or extra-large, heavy components (XK2020C), our models are engineered to deliver performance and reliability. Click “Inquire” to discuss your specific production needs and get a customized quote, or “Add to Basket” to invest in a machine that will drive your manufacturing efficiency. Our dedicated team provides technical consultation, installation guidance, and after-sales support to ensure your success. Don’t compromise on quality—choose our Moving Beam CNC Gantry Milling Machine and take on even the most challenging machining tasks with confidence!
