Product Overview

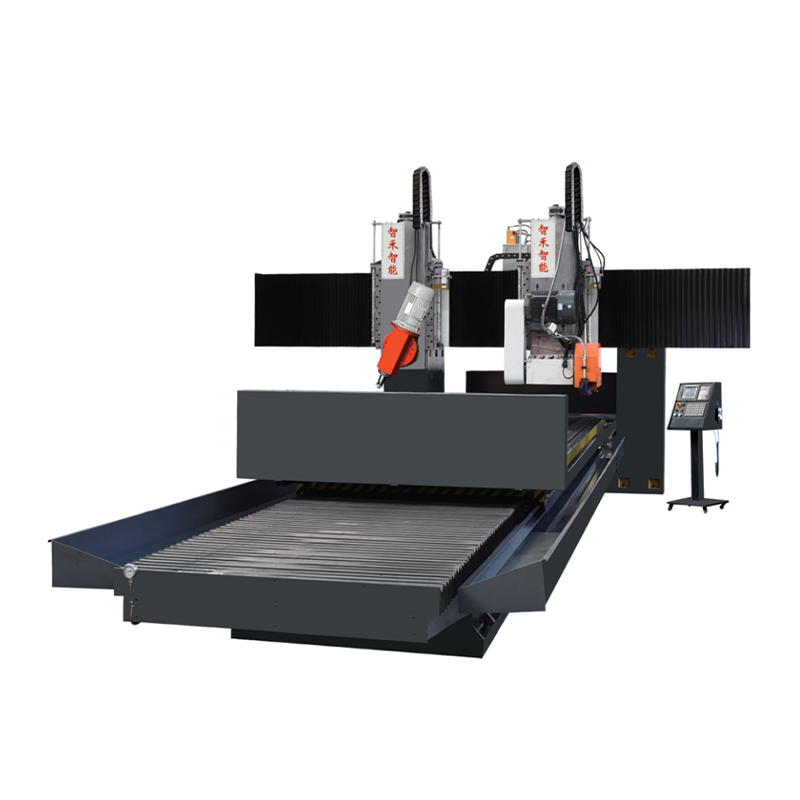

The CNC-controlled Beam Guideway Grinders (MLK Series) are heavy-duty, high-precision gantry-type grinding machines engineered for large-scale and high-requirement processing. Featuring a stepped gantry rigid frame (composed of bed, column, and crossbeam), these machines deliver exceptional dynamic stiffness and stability during high-load operations. Designed for grinding planes, rail surfaces, and large workpieces made of steel, cast iron, and non-ferrous metals, the MLK Series is a game-changer for industries like machine tool manufacturing, mold production, and heavy machinery fabrication. With multiple models (from MLK2010A to MLK8020A), it offers flexible solutions for different workpiece sizes and processing demands.
Key Features
Stepped Gantry Rigid Frame
Integral structure of bed, column, and crossbeam forms a robust rigid frame, ensuring sufficient dynamic stiffness during worktable and carriage movement—critical for heavy-duty grinding.
Advanced Drive & Control System
Hydraulic-driven worktable with automatic speed control (5~25 m/min) for smooth and consistent longitudinal movement.
Carriage horizontal movement and slide vertical movement controlled by precision servo systems, supporting free CNC selection for high precision.
Minimum vertical feed of 0.005 mm, achieving ultra-precise grinding results.
Flexible Grinding Head Design
Vertical grinding head can rotate ±60° freely, adapting to bevel, inclined plane, and complex surface grinding requirements.
Large grinding wheel size (φ500×75×φ203 or φ500×100×φ203) for efficient material removal and prolonged service life.
Heavy-Duty Performance
Worktable maximum load ranges from 4000 kg (MLK2010A) to 30000 kg (MLK8020A), capable of handling large and heavy workpieces.
High motor power (1522 kw) and total electrical capacity (3550 kw) support continuous high-efficiency production.
Safety & Durability
Comprehensive safety control system protects operators and equipment.
Rugged construction and high-quality components ensure long-term reliable operation, reducing maintenance costs.
Detailed Specifications
| Item | Unit | MLK2010A | MLK3010A | MLK3012A |
The largest grinding workpiece size (L×W×H) | mm | 2000×1200×600(800) | 3000×1200×600(800) | 3000×1400×600(800) |
Working mesa size (L×W) | mm | 2000×1000 | 3000×1000 | 3000×1200 |
Table longitudinal range | mm | 2100 | 3100 | 3100 |
Gantry column spacing | mm | 1600 | 1600 | 1600 |
Peripheral grinding head spindle center distance to mesa (Max/Min) | mm | 850/200 | 850/200 | 850/200 |
Table longitudinal movement speed (Hydraulic automatic speed control) | m/min | 5~25 | 5~25 | 5~25 |
Workbench maximum load weight (including magnetic chuck) | kg | 4000 | 5000 | 6000 |
Motor power | kw | 15 | 15 | 15 |
Grinding wheel size (diameter × width × inside diameter) | mm | Φ500×75×Φ203 | Φ500×75×Φ203 | Φ500×75×Φ203 |
Vertical distance | mm | 650 | 650 | 650 |
Minimum vertical feed | mm | 0.005 | 0.005 | 0.005 |
Intermittent feeding | mm | 1~35/bout (Any) | 1~35/bout (Any) | 1~35/bout (Any) |
Total capacity of electrical equipment | kw | About 35 | About 35 | About 36 |
Machine tool appearance size (L×W×H) | mm | About 6000×3500×4000 | About 8500×3500×4000 | About 8500×4300×4200 |
Machine weight | T | About 23 | About 30 | About 32 |
| Item | Unit | MLK4012A | MLK3016A | MLK6016A |
The largest grinding workpiece size (L×W×H) | mm | 4000×1400×600(800) | 3000×1800×800 | 6000×1800×800 |
Working mesa size (L×W) | mm | 4000×1200 | 3000×1600 | 6000×1600 |
Table longitudinal range | mm | 4100 | 3100 | 6100 |
Gantry column spacing | mm | 1600 | 2100 | 2100 |
Peripheral grinding head spindle center distance to mesa (Max/Min) | mm | 850/200 | 1050/200 | 1050/200 |
Table longitudinal movement speed (Hydraulic automatic speed control) | m/min | 5~25 | 5~25 | 5~25 |
Workbench maximum load weight (including magnetic chuck) | kg | 9000 | 7500 | 15000 |
Motor power | kw | 18.5 | 18.5 | 18.5 |
Grinding wheel size (diameter × width × inside diameter) | mm | Φ500×100×Φ203 | Φ500×100×Φ203 | Φ500×100×Φ203 |
Vertical distance | mm | 650 | 850 | 850 |
Minimum vertical feed | mm | 0.005 | 0.005 | 0.005 |
Intermittent feeding | mm | 1~35/bout (Any) | 1~35/bout (Any) | 1~35/bout (Any) |
Total capacity of electrical equipment | kw | About 42 | About 45 | About 50 |
Machine tool appearance size (L×W×H) | mm | About 12500×4300×4200 | About 8500×5000×5000 | About 17000×5000×5200 |
Machine weight | T | About 35 | About 38 | About 56 |
| Item | Unit | MLK8020A |
The largest grinding workpiece size (L×W×H) | mm | 8000×2200×800 |
Working mesa size (L×W) | mm | 8000×2000 |
Table longitudinal range | mm | 8100 |
Gantry column spacing | mm | 2500 |
Peripheral grinding head spindle center distance to mesa (Max/Min) | mm | 1050/200 |
Table longitudinal movement speed (Hydraulic automatic speed control) | m/min | 5~25 |
Workbench maximum load weight (including magnetic chuck) | kg | 30000 |
Motor power | kw | 22 |
Grinding wheel size (diameter × width × inside diameter) | mm | Φ500×100×Φ203 |
Vertical distance | mm | 850 |
Minimum vertical feed | mm | 0.005 |
Intermittent feeding | mm | 1~35/bout (Any) |
Total capacity of electrical equipment | kw | About 50 |
Machine tool appearance size (L×W×H) | mm | About 23000×5500×5400 |
Machine weight | T | About 100 |
Application Scenarios
Machine Tool Manufacturing
Perfect for grinding guideway surfaces of machine tools (e.g., lathes, milling machines) that require ultra-high flatness and parallelism. The rigid frame and precise control ensure consistent guideway quality.
Mold & Large Component Processing
Suitable for grinding large mold bases, stamping dies, and injection molds. The ±60° rotatable grinding head handles complex mold surfaces, while the high load capacity supports large mold workpieces.
Heavy Machinery Fabrication
Ideal for processing heavy-duty components in construction machinery, mining equipment, and marine engines. The machine’s high load capacity and efficient grinding meet the demands of large workpiece production.
Industrial Equipment Maintenance
Used for repairing and regrinding worn surfaces of industrial equipment (e.g., machine tool guideways, hydraulic cylinders) to restore precision and extend equipment service life.
FAQ
What materials can the MLK Series grind?
The machine is designed for grinding steel, cast iron, and non-ferrous metals, suitable for plane, rail surface, and complex surface precision processing.
What is the worktable movement speed range?
The hydraulic-driven worktable offers automatic speed control from 5 to 25 m/min, adapting to different grinding efficiency requirements.
Can the vertical grinding head be adjusted for bevel processing?
Yes! The vertical grinding head can rotate ±60° freely, making it ideal for bevel, inclined plane, and complex surface grinding.
What is the maximum workpiece size the MLK Series can handle?
The largest model (MLK8020A) can grind workpieces up to 8000×2200×800 mm, while smaller models (e.g., MLK2010A) handle 2000×1200×600(800) mm workpieces—contact us for custom solutions.
