Product Overview

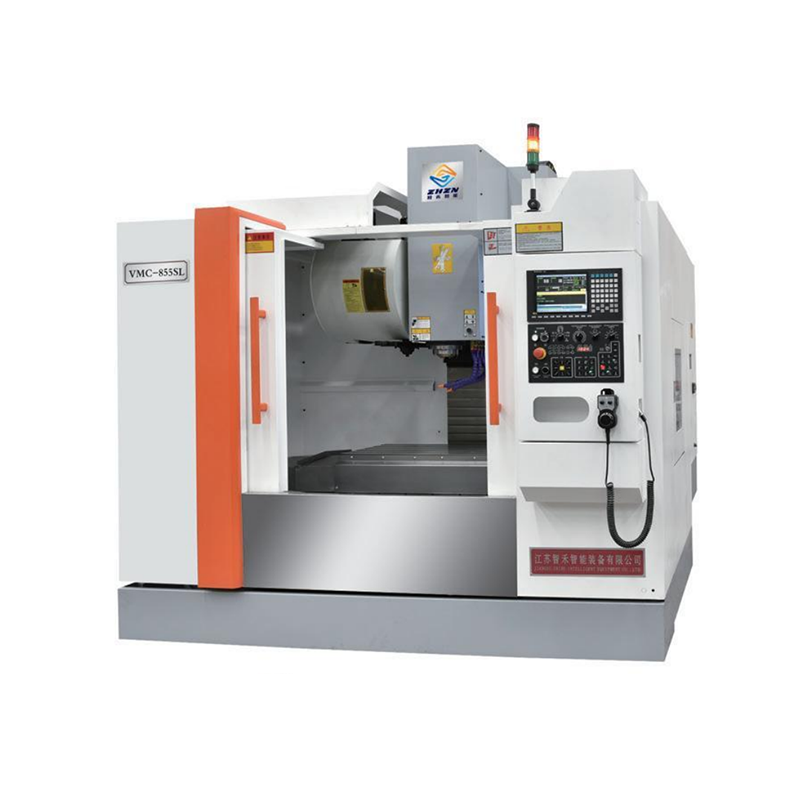

The High-Speed Vertical Machining Center Series from Jiangsu Zhihe Intelligent Equipment Co., Ltd. redefines efficiency and precision in CNC machining. Available in six models (VMC-850SL/855SL/960SL/1160SL/VMC-1375SL/1580SL), this series is engineered for high-speed movement, thermal stability, and versatile multi-axis potential. With 48m/min rapid traverse speed (on select models), minimal thermal displacement, and a robust structure, it excels in high-volume production and complex part machining across industries. Whether you need to process small electronic components or large structural parts, these machining centers deliver consistent accuracy (JIS±0.005/300mm positioning) and durability.
Key Features
Robust Structure for High-Speed Stability
Strong bed structure withstands inertia from high-speed movement, reducing vibration and ensuring machining consistency even during long runs.
Heightening column design reserves space for fourth and fifth axis installation, expanding versatility for complex machining tasks.
High-Precision Triaxial Transmission
X/Y/Z axes adopt high-speed silent screws and silent wire rails, minimizing thermal displacement and ensuring superior precision (JIS±0.005/300mm positioning accuracy).
48m/min rapid adjustment displacement (VMC-850SL) saves up to 50% of non-processing time, boosting overall productivity.
Flexible Machining Capabilities
Multiple models with X-axis travel from 800mm to 1500mm and maximum workpiece weight capacity up to 1500kg (VMC-1580SL), catering to diverse part sizes.
Optional control systems (Mitsubishi/Fanuc/Siemens) allow customization based on operational preferences and technical requirements.
Enhanced Durability & Tool Management
Three-axis guards protect screw rails from debris, extending machine lifespan and reducing maintenance needs.
24-tool storage capacity ensures efficient tool changes, minimizing downtime in high-volume production.
Powerful Spindle Performance
Spindle speeds range from 8000rpm to 12000rpm (optional), paired with spindle motor power up to 18.5kw (VMC-1580SL), handling heavy cutting and high-speed finishing.
BT40/BT50 taper specifications (depending on model) support a wide range of cutting tools for versatile applications.
Detailed Specifications
Item | Unit | VMC-850SL | VMC-855SL |
X-axis travel | mm | 800 | 800 |
Y-axis travel | mm | 500 | 550 |
Z-axis travel | mm | 500 | 550 |
Distance from spindle end face to work surface | mm | 120~620 | 120~670 |
Distance from spindle center to column | mm | 550 | 570 |
Table size (L×W) | mm | 1000×500 | 1000×550 |
Maximum bearing capacity | kg | 500 | 500 |
Table T-slot (Number×size×spacing) | mm | 5×18×90 | 5×18×90 |
Taper specification | - | BT40 | BT40 |
Spindle speed (optional) | rpm/min | 12000 | 10000 (Standard) |
Spindle motor power | kw | 7.5 | 7.5/11 |
Three-axis motor (X/Y/Z) power | kw | 2/2/3 | 2/2/3 |
Control system (optional) | - | Mitsubishi/Fanuc/Siemens | Mitsubishi/Fanuc/Siemens |
X/Y/Z axis fast moving speed | m/min | 48/48/48 | 36/36/36 |
Positioning accuracy | mm | JIS±0.005/300 | JIS±0.005/300 |
Repeated positioning accuracy | mm | JIS±0.003/300 | JIS±0.003/300 |
Atmospheric pressure | kg/cm² | ≥6 | ≥6 |
Tool storage capacity | Bundle | 24 | 24 |
Machine weight | T | 5 | 5.3 |
Machine size (L×W×H) | mm | 2200×2100×2500 | 2650×2200×2800 |
Item | Unit | VMC-960SL | VMC-1160SL |
X-axis travel | mm | 900 | 1100 |
Y-axis travel | mm | 600 | 600 |
Z-axis travel | mm | 500（700） | 600 |
Distance from spindle end face to work surface | mm | 120~670 | 100~660 |
Distance from spindle center to column | mm | 600 | 645 |
Table size (L×W) | mm | 1050×600 | 1200×600 |
Maximum bearing capacity | kg | 600 | 800 |
Table T-slot (Number×size×spacing) | mm | 5×18×100 | 5×18×100 |
Taper specification | - | BT40 | BT40 |
Spindle speed (optional) | rpm/min | 8000 (Standard)/10000 | 8000 (Standard)/10000 |
Spindle motor power | kw | 7.5 | 7.5/11 |
Three-axis motor (X/Y/Z) power | kw | 3/3/3 | 3/3/3 |
Control system (optional) | - | Mitsubishi/Fanuc/Siemens | Mitsubishi/Fanuc/Siemens |
X/Y/Z axis fast moving speed | m/min | 24/24/24 | 20/20/20（12/12/12） |
Positioning accuracy | mm | JIS±0.005/300 | JIS±0.005/300 |
Repeated positioning accuracy | mm | JIS±0.003/300 | JIS±0.003/300 |
Atmospheric pressure | kg/cm² | ≥6 | ≥6 |
Tool storage capacity | Bundle | 24 | 24 |
Machine weight | T | 5 | 8 |
Machine size (L×W×H) | mm | 2750×2200×2700 | 3300×2600×2800 |
Item | Unit | VMC-1375SL | VMC-1580SL |
X-axis travel | mm | 1300 | 1500 |
Y-axis travel | mm | 750 | 800 |
Z-axis travel | mm | 700 | 700 |
Distance from spindle end face to work surface | mm | 120~820 | 130~830 |
Distance from spindle center to column | mm | 765 | 810 |
Table size (L×W) | mm | 1400×700 | 1700×800 |
Maximum bearing capacity | kg | 1200 | 1500 |
Table T-slot (Number×size×spacing) | mm | 5×18×140 | 5×22×135 |
Taper specification | - | BT40 | BT50 |
Spindle speed (optional) | rpm/min | 8000 (Standard)/10000 | 8000 |
Spindle motor power | kw | 11/15 | 18.5 |
Three-axis motor (X/Y/Z) power | kw | 3/3/3 | 4.5/4.5/4.5 |
Control system (optional) | - | Mitsubishi/Fanuc/Siemens | Mitsubishi/Fanuc/Siemens |
X/Y/Z axis fast moving speed | m/min | 20/20/20 | 20/20/20 |
Positioning accuracy | mm | JIS±0.005/300 | JIS±0.005/300 |
Repeated positioning accuracy | mm | JIS±0.003/300 | JIS±0.003/300 |
Atmospheric pressure | kg/cm² | ≥6 | ≥6 |
Tool storage capacity | Bundle | 24 | 24 |
Machine weight | T | 11 | 14 |
Machine size (L×W×H) | mm | 3600×3000×2850 | 4300×3200×3500 |
Application Scenarios
Electronics Manufacturing
Processes precision electronic components (e.g., circuit board housings, sensor parts) with high-speed, low-vibration machining to ensure tight tolerances.
Automotive Parts Production
Machines engine blocks, transmission parts, and suspension components in high volumes, leveraging 48m/min rapid traverse and efficient tool management.
Aerospace Component Machining
Handles high-strength alloy parts (e.g., aluminum, titanium components) with stable spindle performance and multi-axis compatibility for complex geometries.
Mold & Die Making
Creates mold cavities and cores with high precision (JIS±0.003/300mm repeated positioning accuracy) and smooth surface finishes, reducing post-processing needs.
General Machinery Production
Manufactures structural parts, gears, and shafts for industrial machinery, accommodating workpiece weights up to 1500kg and large dimensions.
FAQ
Which control system is best for my application?
The series offers optional Mitsubishi, Fanuc, or Siemens control systems. Fanuc is ideal for high-precision tasks, Mitsubishi for user-friendly operation, and Siemens for complex multi-axis programming—contact our team for personalized recommendations.
Can I upgrade the machine with fourth or fifth axes later?
Yes! The heightening column design reserves space for fourth and fifth axis installation, allowing you to expand capabilities as your production needs evolve.
What is the maximum workpiece size the largest model can handle?
The VMC-1580SL features a 1700×800mm worktable and 1500mm X-axis travel, supporting workpieces up to 1500mm in length and 1500kg in weight.
