Product Overview

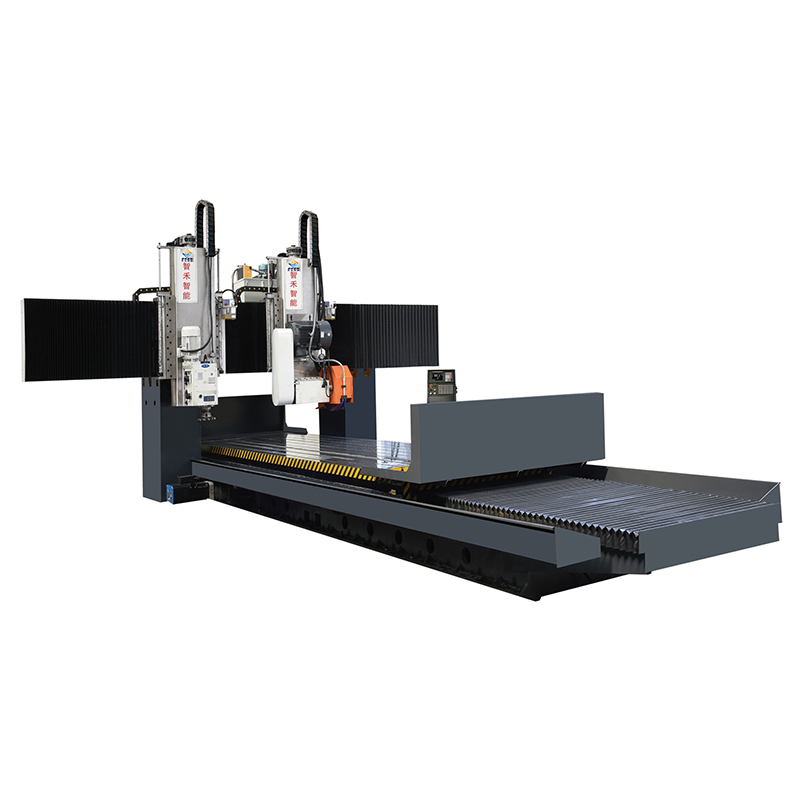

The XMK Series Miling And Grinding Machine is a game-changing industrial equipment designed for efficiency and precision. Integrating a fixed vertical milling head and horizontal milling head on a single cross beam, this machine enables simultaneous milling and grinding processes—eliminating the need for multiple devices, reducing equipment investment, and saving workshop space. Built with a fixed beam gantry structure and servo motor control, it delivers consistent performance even in heavy-duty operations, making it a top choice for the machining industry and mold industry. Whether processing large workpieces or precision components, the XMK Series ensures superior quality, increased productivity, and long-term reliability.
Key Features
Fixed Beam Gantry Structure for Maximum Stability
The machine adopts a rugged fixed beam gantry structure that minimizes vibration during high-speed or heavy-load machining. This design enhances structural rigidity, ensuring stable operation and precise results even when handling large workpieces. The robust frame layout supports consistent performance over extended production cycles.
Servo Motor Control & High-Precision Drive
Equipped with servo motors for vertical and cross-direction control, the XMK Series guarantees accurate motion control. The worktable uses imported gear and rack drives, enabling uniform feeding speeds as low as 0.08m/min—critical for precision tasks. This drive system ensures smooth movement, reducing errors and improving workpiece quality.
Dual-Head Design for Integrated Machining
The combination of vertical and horizontal milling heads allows simultaneous milling and grinding, cutting down processing time by up to 50% compared to traditional single-function machines. This integrated approach eliminates workpiece repositioning, reducing setup time and minimizing dimensional deviations.
Exceptional Precision & Power Configuration
With a minimum vertical feed of 0.005m and workpiece surface roughness of Ra0.63μm, the XMK Series delivers micron-level precision. The boring and milling head (11Kw) and grinding head (22-30Kw) provide ample power for heavy-duty cutting and grinding, supporting a wide range of material processing needs.
Detailed Specifications
MAIN SPEC | Unit | XMK4020 | XMK6020 | XMK8020 |
Size of worktable (W×L) | mm | 2000×4000 | 2000×6000 | 2000×8000 |
Max process capability (W×L×H) | mm | 2400×4000×600(800) | 2400×6000×600(800) | 2400×8000×600(800) |
Min vertical feed | mm | 0.005 | 0.005 | 0.005 |
Cross feed (Continuous) | m/min | 0.25–2.5 | 0.25–2.5 | 0.25–2.5 |
Cross feed (Intermittent) | mm/frequency | 1~40 | 1~40 | 1~40 |
Distance between columns | mm | 2500 | 2500 | 2500 |
Boring and milling head power | Kw | 11 | 11 | 11 |
Grinding head power | Kw | 22 | 30 | 30 |
Worktable surface roughness | μm | Ra0.63 | Ra0.63 | Ra0.63 |
Max load of worktable (include chuck) | Kg | 12000 | 18000 | 22000 |
Machine weight | Kg | About 50000 | About 70000 | About 90000 |
MAIN SPEC | Unit | XMK6030 | XMK8030 |
Size of worktable (W×L) | mm | 3000×6000 | 3000×8000 |
Max process capability (W×L×H) | mm | 3400×6000×600(800) | 3400×8000×600(800) |
Min vertical feed | mm | 0.005 | 0.005 |
Cross feed (Continuous) | m/min | 0.25–2.5 | 0.25–2.5 |
Cross feed (Intermittent) | mm/frequency | 1~40 | 1~40 |
Distance between columns | mm | 3500 | 3500 |
Boring and milling head power | Kw | 11 | 11 |
Grinding head power | Kw | 30 | 30 |
Worktable surface roughness | μm | Ra0.63 | Ra0.63 |
Max load of worktable (include chuck) | Kg | 25000 | 25000 |
Machine weight | Kg | About 100000 | About 120000 |
Application Scenarios
General Machining Industry
Ideal for processing large structural components, precision mechanical parts, and assembly components for aerospace, automotive, and heavy machinery sectors. It excels in milling and grinding steel, cast iron, and alloy workpieces, supporting mass production and custom fabrication.
Mold & Die Manufacturing
Perfect for large mold fabrication, including mold bases, die cores, and cavity blocks. The integrated machining capability ensures consistent precision across complex mold surfaces, reducing secondary processing and shortening production lead times for plastic, metal, and die-casting molds.
Frequently Asked Questions (FAQ)
What is the maximum workpiece size the XMK Series can handle?
The largest model (XMK8030) supports workpieces up to 3400×8000×800mm, making it suitable for oversized mold and machinery components.
How precise is the XMK Series Miling And Grinding Machine?
It achieves a minimum vertical feed of 0.005mm and workpiece surface roughness of Ra0.63μm, meeting strict precision requirements for industrial and mold applications.
Is the machine easy to operate?
Yes, the servo motor control system and intuitive interface simplify operation. The uniform feed speed and stable structure reduce operator skill requirements, ensuring consistent results.
What maintenance is required?
Regular lubrication of guide rails and gear racks, inspection of servo motors, and cleaning of the magnetic separator (0.06Kw) are recommended to maintain performance.
