Product Overview

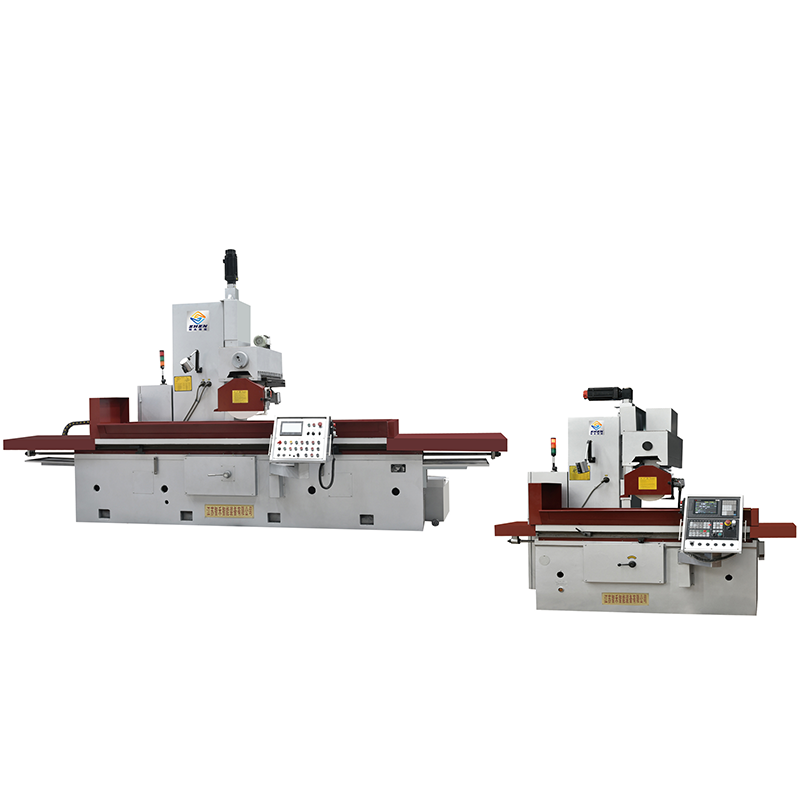

Integrating CNC control with a head-movable design, these machines deliver unmatched precision, efficiency, and repeatability for high-volume and high-precision manufacturing. With worktable sizes ranging from 1000×320mm to 1250×630mm and advanced motor configurations, the series caters to diverse industries requiring automated surface grinding. Whether for precision components or mass-produced parts, the CNC Head Move Surface Grinder reduces human error, boosts productivity, and ensures consistent quality.
Key Features
CNC Precision Control
Equipped with advanced NC/CNC systems, the grinder enables automated programming of grinding paths, with a vertical movement precision of 0.005mm. This level of automation ensures repeatable accuracy for batch production, reducing setup time and operational errors.
Enhanced Power & Efficiency
With total motor power ranging from 14Kw (MK7132/MK7140) to 16.5Kw (MK7150/MK7163) and a 9Kw spindle motor (for MK7150/MK7163), the machine delivers powerful grinding performance. The abrasive wheel speed of 1440r/min ensures efficient material removal while maintaining surface quality (Ra:0.63μm).
Versatile Worktable & Movement Range
The worktable dimensions (L×W×H) vary by model: 1000×320×400mm (MK7132), 1000×400×400mm (MK7140), 1250×500×600mm (MK7150), and 1250×630×600mm (MK7163). Maximum longitudinal movement (1100-1350mm) and cross movement (350-700mm) accommodate small to large workpieces.
Durable & Low-Maintenance Design
Built with a net weight of 3980Kg to 6500Kg, the grinder features a stable base that dampens vibration. The dual rapid lifting motors (2.3Kw + 1.2Kw) enable quick head positioning, while the 3-4Kw oil pump motor ensures reliable lubrication for long-term operation.
Detailed Specifications
Description | Unit | MK7132 | MK7140 | MK7150 | MK7163 |
Size of worktable (L×W×H) | mm | 1000×320×400 | 1000×400×400 | 1250×500×600 | 1250×630×600 |
Max. Longitudinal movement of worktable | mm | 1100 | 1100 | 1350 | 1350 |
Max. Distance from spindle centerline to worktable surface | mm | 580 | 580 | 800 | 800 |
Max. Cross movement of grinding head | mm | 350 | 450 | 570 | 700 |
Vertical movement of grinding head (handwheel) | mm | 0.005 | 0.005 | 0.005 | 0.005 |
Rapid lifting motor power (1) | Kw | 2.3 | 2.3 | 2.3 | 2.3 |
Rapid lifting motor power (2) | Kw | 1.2 | 1.2 | 1.2 | 1.2 |
Abrasive wheel dimension (D×d×w) | mm | Φ350×40×127 | Φ350×40×127 | Φ400×50×203 | Φ400×50×203 |
Grinding wheel speed | r/min | 1440 | 1440 | 1440 | 1440 |
Total motor power | Kw | 14 | 14 | 16.5 | 16.5 |
Spindle motor power | Kw | 7.5 | 7.5 | 9 | 9 |
Oil pump motor power | Kw | 3 | 3 | 4 | 4 |
Processing accuracy | mm | 300:0.008 | 300:0.008 | 300:0.008 | 300:0.008 |
Surface roughness | μm | Ra:0.63 | Ra:0.63 | Ra:0.63 | Ra:0.63 |
N/G weight | Kg | 3980/4200 | 4300/4600 | 5500/6200 | 6500/7000 |
Package (L×W×H) | mm | 2800×1750×2350 | 2800×1750×2350 | 3600×1930×2600 | 3800×1950×2600 |
Application Scenarios
Precision Machinery Manufacturing
Perfect for processing high-precision components such as bearing seats, linear guides, and precision shafts, the CNC Head Move Surface Grinder ensures tight tolerances and consistent surface finish.
Electronic & Electrical Equipment
Used to grind semiconductor fixtures, motor cores, and electronic device housings, the machine’s automation and precision meet the strict requirements of the electronics industry.
Medical Device Production
Ideal for manufacturing surgical instruments, implant components, and medical equipment parts, the grinder delivers the biocompatible surface quality and dimensional accuracy required in healthcare.
Mold & Die Industry
Suitable for finishing injection molds, stamping dies, and die-casting molds, the CNC control enables complex grinding paths, reducing lead times for mold production.
FAQ
What advantages does CNC control offer over manual grinders?
CNC control enables automated programming, repeatable precision, and reduced labor costs. It eliminates human error in path planning and adjustments, making it ideal for batch production and complex grinding tasks.
What is the maximum surface roughness achievable with this machine?
The grinder consistently achieves a surface roughness of Ra:0.63μm, meeting the requirements of most precision manufacturing applications, including medical devices and precision machinery.
Can the machine be customized for specific applications?
Yes, we offer customization options for CNC systems, worktable sizes, and motor configurations to meet unique industry needs. Contact our team to discuss your specific requirements.
Is training provided for operation and maintenance?
We provide comprehensive training for operators and maintenance staff, covering CNC programming, machine setup, and routine maintenance. Technical support is also available post-purchase to ensure smooth operation.
