Product Overview

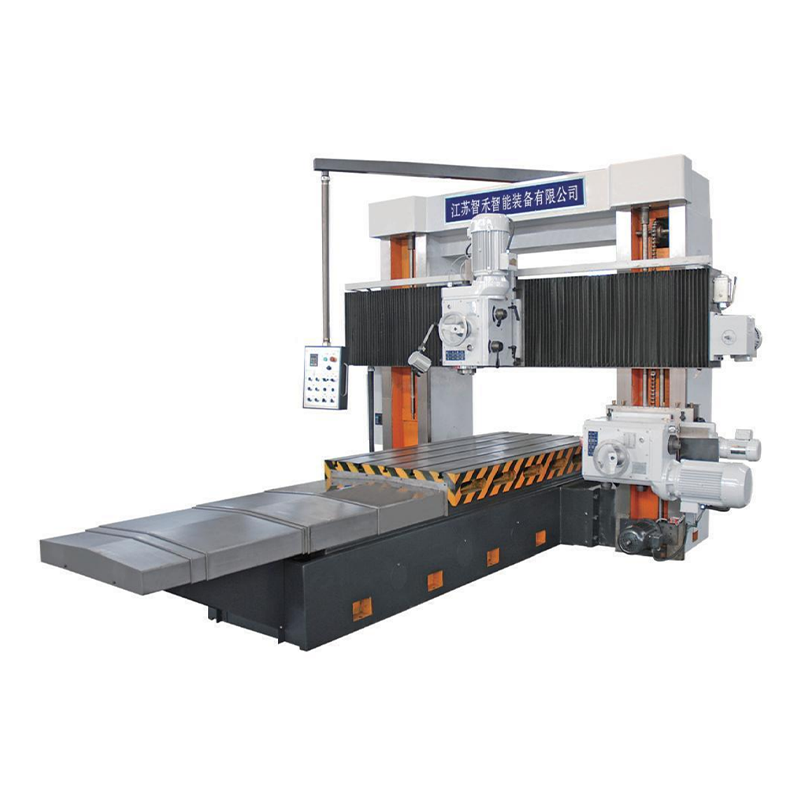

The Gantry Milling Machine (models: K2010/X2010T) is a high-performance machining solution engineered for heavy-load, high-speed processing. Manufactured by ZHZN, this machine excels in milling planes, bevels, and grooves using various milling cutters. Its powerful motor configuration, rigid structure, and multi-milling head design make it suitable for heavy-duty machining tasks in diverse industries. With stepless feed speed and a stable spindle speed range, it delivers consistent precision and efficiency, even under extreme working conditions. Whether processing large workpieces or batch production, this gantry milling machine is a reliable choice for enhancing productivity and product quality.
Key Features
Powerful & Rigid Mechanical Structure
Built with a robust gantry frame and heavy-duty worktable, the machine offers exceptional rigidity and load-bearing capacity (up to 10,000 kg). This design minimizes deformation during high-speed heavy-load machining, ensuring stable performance and precise results for large workpieces.
Multi-Milling Head Configuration
Equipped with 2 milling heads (vertical + side), each powered by a 7.5 kw motor. This dual-head design enables simultaneous multi-surface machining, reducing processing time and improving production efficiency. The heads are engineered for high torque and stability, handling tough materials with ease.
Stepless Feed & Stable Spindle Speed
Stepless step change milling feed speed allows flexible adjustment to match different materials and machining requirements, from roughing to finishing.
Spindle speed range of 6 levels (82~506 r/min) provides consistent cutting performance, ensuring smooth chip removal and superior surface finish.
Large Processing Capacity & High Load Capacity
The machine supports maximum machining sizes of 2000×1350×1000 mm (X2010) and 3000×1350×1000 mm (X2010T). The worktable (2000×1000 mm / 3000×1000 mm) features 5 T-slots (22 mm width) for secure workpiece clamping, with a maximum load capacity of 8000 kg (X2010) and 10,000 kg (X2010T).
Detailed Specifications
Technical Specifications | Description | Unit | X2010 | X2010T |
Maximum Machining Size (L x W x H) | Max. Processing capacity(L×W×H) | mm | 2000×1350×1000 | 3000×1350×1000 |
Distance Between Two Columns | Distance between columns | mm | 1400 | 1400 |
Worktable Dimensions (L x W) | Size of worktable | mm | 2000×1000 | 3000×1000 |
Worktable Feed Motor Power | Power of worktable feed motor | kw | 2.2 | 3.0 |
Vertical Milling Head Motor Power | Power of vertical milling head motor | kw | 7.5 | 7.5 |
Side Milling Head Motor Power | Power of side milling head motor | kw | 7.5 | 7.5 |
Number of Milling Heads | Number of milling head | piece | 2 | 2 |
Milling Feed Speed | Speed of milling |
| stepless step change | stepless step change |
Spindle Speed Range | Range of the spindle speed | r/mm | 6(82~506) | 6(82~506) |
Number of T-Slots | Number of T-slots |
| 5 | 5 |
T-Slot Width | Width of the T-slot | mm | 22 | 22 |
Machine Capacity | max. load | kg | 8000 | 10000 |
Machine Weight | Weight | kg | 15000 | 18000 |
Machine Overall Dimensions (L x W x H) | Overall dimensions of machine(L×W×H) | mm | 5500×3200×2800 | 7400×3200×2800 |
Application Scenarios
Heavy Machinery Manufacturing
Perfect for processing large structural parts, such as crane arms, machine bases, and engineering machinery frames. The machine’s high load capacity and rigid structure handle heavy workpieces, ensuring precise milling of planes and grooves.
Automotive Parts Processing
Suitable for batch production of automotive chassis components, engine brackets, and transmission parts. The dual milling heads and stepless feed speed improve processing efficiency, meeting the high-volume demands of the automotive industry.
Mold & Die Making
Used for milling mold bases, cavities, and large die components. The stable spindle speed and precise feed control guarantee the mold’s dimensional accuracy, while the multi-head design reduces setup time for complex mold structures.
Construction Machinery Components
Ideal for processing construction machinery parts like excavator buckets, loader arms, and hydraulic cylinder bases. The machine’s ability to handle heavy-load machining ensures that components withstand harsh working conditions.
FAQ
What surfaces can the gantry milling machine process?
It specializes in milling planes, bevels, and grooves using various milling cutters, adapting to diverse machining needs in manufacturing industries.
What is the maximum load capacity of the worktable?
The X2010 model supports up to 8000 kg, while the X2010T model can handle 10,000 kg (including workpieces and fixtures), suitable for heavy-duty applications.
How many milling heads does the machine have, and what are their powers?
It is equipped with 2 milling heads (vertical + side), each with a motor power of 7.5 kw, enabling efficient multi-surface machining.
What is the spindle speed range?
The spindle speed ranges from 82 to 506 r/min (6 levels), providing flexible options for different materials and cutting requirements.
