Product Overview

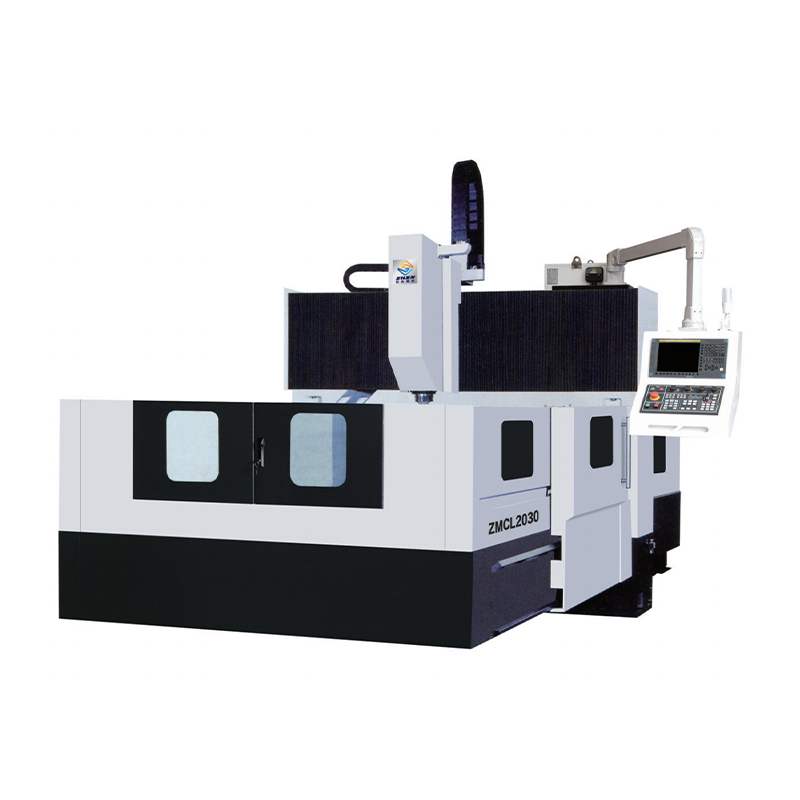

The Gantry Drilling And Milling Center ZMCL series (ZMCL-1216, ZMCL-1220, ZMCL-2030, ZMCL-3030) is a heavy-duty machining solution engineered for high-efficiency drilling and milling of large, heavy workpieces. Featuring a robust gantry structure, X/Y axes with heavy roller linear guides, and a Z-axis with hard rail, this series delivers exceptional rigidity and stability. Equipped with a Taiwan-famous spindle unit, synchronous belt deceleration drive, and large-flow cooling system, the ZMCL series excels in processing flanges, large valves, and heavy-duty structural parts, making it a core equipment in heavy industry and custom manufacturing.
Key Features
Rigid Guideway & Gantry Structure
X/Y axes adopt heavy roller linear guides for smooth motion and high load-bearing capacity, while the Z-axis uses a hard rail to enhance cutting rigidity. The gantry frame design minimizes deformation during heavy-load processing, ensuring consistent precision.
High-Torque Spindle System
With a BT50 spindle taper and 11/15~15/18.5 kw spindle motor, the series offers spindle torque up to 300 N.m. The synchronous belt deceleration drive balances speed and torque, enabling efficient machining of thick-walled parts and high-strength materials.
Large-Capacity Workbench
Table sizes range from 1000×1600 mm to 2500×3000 mm, with maximum load capacities up to 10000 kg. The table features 713 T-slots (2228 mm width) for secure workpiece clamping, adapting to large and irregular parts.
Efficient Cooling & Motion Control
The large-flow, high-lift cooling system fully cools tools during high-speed cutting, extending tool life and improving surface finish. X/Y axes fast move at 12000 mm/min and Z-axis at 8000 mm/min, reducing non-cutting time.
Superior Precision
Boasting a positioning accuracy of ±0.005/300 mm and repeated positioning accuracy of ±0.003/1000 mm, the ZMCL series guarantees precise hole drilling and milling, meeting strict industrial standards.
Detailed Specifications
Item | Unit | ZMCL-1216 | ZMCL-1220 | ZMCL-2030 | ZMCL-3030 |
X-axis travel | mm | 1600 | 2000 | 3000 | 3000 |
Y-axis travel | mm | 1250 | 1250 | 2000 | 3000 |
Z-axis travel | mm | 500 | 500 | 500 | 500 |
Table size (L×W) | mm | 1000×1600 | 1000×2000 | 1600×3000 | 2500×3000 |
Maximum table load | kg | 2000 | 3000 | 6000 | 10000 |
Table T-slots (Qty×width×spacing) | mm | 7×22×160 | 7×22×160 | 9×28×200 | 13×28×200 |
Column spacing | mm | 1600 | 1600 | 2400 | 3500 |
Spindle end face to work surface | mm | 150~650 | 150~650 | 150~650 | 150~650 |
Spindle taper | - | BT50 | BT50 | BT50 | BT50 |
Feed rate | mm/min | 4000 | 4000 | 4000 | 4000 |
Fast move (X/Y-axis) | mm/min | 12000 | 12000 | 12000 | 12000 |
Fast move (Z-axis) | mm/min | 8000 | 8000 | 8000 | 8000 |
Spindle motor power | kw | 11/15 | 11/15 | 15/18.5 | 15/18.5 |
Maximum spindle speed | rpm | 10~3000 | 10~4000 | 10~4000 | 10~4000 |
Spindle torque | N.m | 230 | 230 | 300 | 300 |
Machine weight | kg | 10000 | 11500 | 20000 | 28000 |
Application Scenarios
Flange & Large Valve Processing
Specialized in drilling and milling flanges, gate valves, and globe valves, the ZMCL series’ large workbench and high torque handle the thick walls and large diameters of these components with ease.
Heavy-Duty Machinery Manufacturing
Used for processing frames, bases, and connecting rods of construction machinery, mining equipment, and marine engines, where stability and load capacity are critical.
Steel Structure Component Processing
Ideal for drilling holes and milling surfaces on steel beams, columns, and brackets in bridge, building, and power transmission projects.
Custom Large-Part Fabrication
Suitable for small-batch production of custom large parts, such as industrial equipment housings and special-purpose mechanical components, adapting to diverse design requirements.
FAQ
What guideway types are used in the ZMCL series?
X/Y axes use heavy roller linear guides for smooth motion and high load-bearing capacity, while the Z-axis adopts a hard rail to enhance cutting rigidity and durability.
What is the maximum spindle speed of different models?
ZMCL-1216 offers 103000 rpm, while ZMCL-1220, ZMCL-2030, and ZMCL-3030 reach 104000 rpm, adapting to different material processing needs.
How does the cooling system improve machining performance?
The large-flow, high-lift water pump ensures full tool cooling during high-speed cutting, reducing tool wear and improving workpiece surface finish, especially for long-duration processing.
What is the positioning accuracy of the ZMCL series?
All models feature a positioning accuracy of ±0.005/300 mm and repeated positioning accuracy of ±0.003/1000 mm, guaranteeing precise machining of key dimensions.
