Product Overview

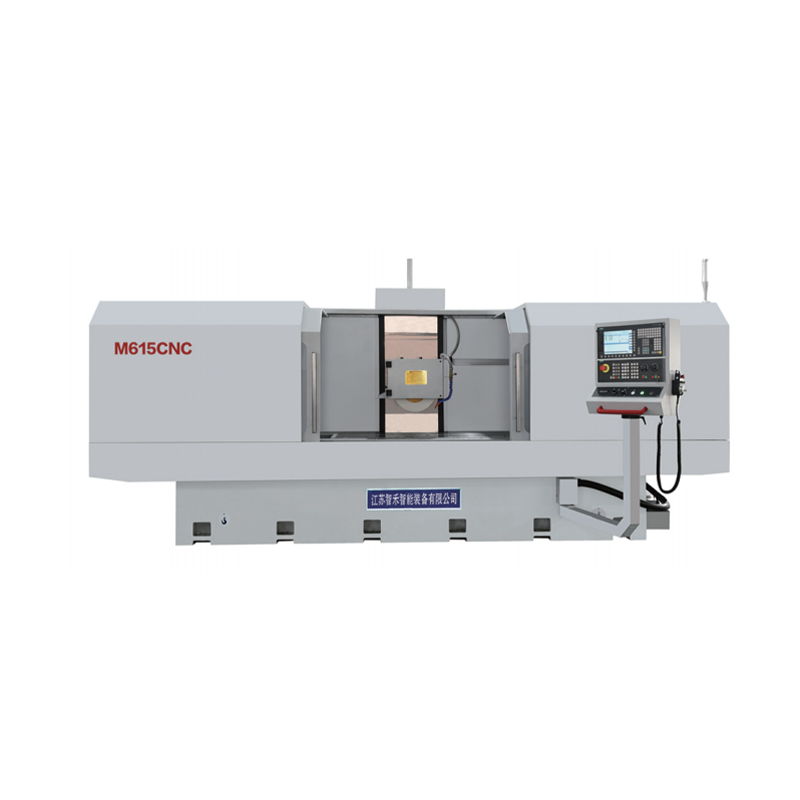

Developed by Jiangsu Zhihe Intelligent Equipment Co., Ltd., this series combines CNC automation with robust mechanical design, delivering consistent grinding quality, high load capacity, and user-friendly operation. Suitable for grinding flat surfaces of metal workpieces—from small precision parts to large heavy-duty components—the grinders excel in industries requiring tight tolerances and smooth surface finishes.
Key Features
Large Grinding Area & High Load Capacity
With grinding areas ranging from 500×1000mm to 600×2000mm and table loads up to 1500kg, the series handles diverse workpiece sizes—from small components to large mechanical parts—without compromising stability.
Precision Axis Movement Control
X Axis (Longitudinal Movement): Offers table travel up to 2100mm and adjustable speed (8~25m/min), ensuring efficient coverage of large workpieces.
Y Axis (Vertical Movement): Features a minimum down feedrate of 0.001mm and speed range of 1~4500mm/min, enabling ultra-precise depth control for fine grinding.
Z Axis (Cross Movement): Provides 550~650mm travel and 0.002mm minimum feedrate, ensuring uniform grinding across the workpiece surface.
Stable Spindle Performance
The grinding spindle is powered by an 11kw motor, delivering a standard speed of 1400rpm and an optional adjustable range of 800~2400rpm. Paired with 400×50×127mm grinding wheels, it ensures consistent material removal and smooth surface finishes.
CNC Automation for Efficiency
Equipped with intuitive CNC control, the grinders reduce manual intervention, minimize human error, and enable programmable grinding sequences—ideal for batch production and repeatable tasks.
Compact & Space-Efficient Design
Despite their large grinding capacity, the machines feature optimized packing and floor space dimensions (4000×3300mm to 6000×3500mm), fitting seamlessly into most production workshops.
Detailed Specifications
Parameters | Unit | M510CNC | M515CNC | M615CNC | M620CNC |
Grinding Area (Workpiece Size) | mm | 500×1000 | 500×1500 | 600×1500 | 600×2000 |
Table Load | kg | 800 | 1000 | 1200 | 1500 |
Max. X-axis Table Travel | mm | 1100 | 1600 | 1600 | 2100 |
Table Speed (X-axis) | m/min | 8~25 | 8~25 | 8~25 | 8~25 |
Distance from Table to Grinding Spindle (Y-axis) | mm | 600 | 600 | 740 | 740 |
Y-axis Vertical Speed | mm/min | 1~4500 | 1~4500 | 1~4500 | 1~4500 |
Min Y-axis Down Feedrate | mm | 0.001 | 0.001 | 0.001 | 0.001 |
Max. Z-axis Cross Travel | mm | 550 | 550 | 650 | 650 |
Z-axis Cross Speed | mm/min | 1~4500 | 1~4500 | 1~4500 | 1~4500 |
Min Z-axis Cross Feedrate | mm | 0.002 | 0.002 | 0.002 | 0.002 |
Spindle Motor Power | kw | 11 | 11 | 11 | 11 |
Standard Spindle Speed | rpm | 1400 | 1400 | 1400 | 1400 |
Optional Spindle Speed Range | rpm | 800~2400 | 800~2400 | 800~2400 | 800~2400 |
Grinding Wheel Dimensions | mm | 400×50×127 | 400×50×127 | 400×50×127 | 400×50×127 |
Floor Space (L×W) | mm | 4000×3300 | 5000×3300 | 5000×3500 | 6000×3500 |
Net Weight / Gross Weight | kg | 6000/7000 | 8000/9000 | 9000/10000 | 10000/11000 |
Application Scenarios
Mold & Die Precision Grinding
Perfect for finishing mold surfaces, cavity walls, and die inserts—with 0.001mm minimum feedrate ensuring mirror-like finishes and tight dimensional tolerances.
Mechanical Components Finishing
Ideal for grinding flat surfaces of gears, shafts, bearings, and housings, ensuring parallelism and flatness for reliable assembly and operation.
Precision Equipment Accessories
Meets the strict surface quality requirements for medical devices, electronic components, and optical equipment parts—thanks to stable spindle speed and precise axis control.
Automotive Industry Parts Processing
Suitable for grinding engine blocks, cylinder heads, and brake components, delivering consistent surface roughness and flatness for optimal performance.
FAQ
What is the optional spindle speed range?
The grinders offer an optional spindle speed range of 800~2400rpm, allowing customization for different grinding wheel materials and workpiece types.
How precise is the vertical feedrate?
The Y-axis features a minimum down feedrate of 0.001mm, enabling ultra-fine grinding for high-precision applications.
What is the maximum workpiece size the largest model can handle?
The M620CNC supports workpieces up to 600×2000mm (grinding area) and has a table load capacity of 1500kg, suitable for large heavy-duty components.
Does the machine require a large workshop space?
No. The compact design ensures floor space ranges from 4000×3300mm (M510CNC) to 6000×3500mm (M620CNC), optimizing workshop layout efficiency.
