Product Overview

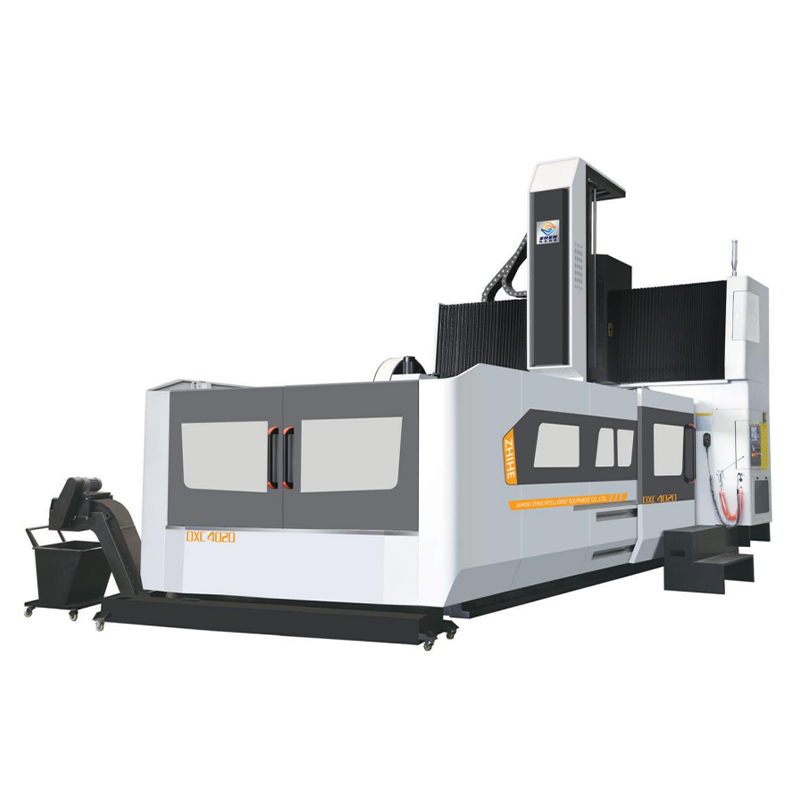

The DXC Series Fixed Beam CNC Gantry Machining Center is a high-performance, multi-functional mechanical processing equipment designed to meet the diverse needs of modern manufacturing. As a leading fixed beam gantry machining solution in China, it integrates core processing functions including milling, boring, drilling (drilling, expanding, reaming), tapping, and countersinking. Available in two main series (DXC20 and DXC25) with models like DXC2520, DXC3020, DXC4020, DXC3025, DXC4025, and DXC5025, this gantry machining center boasts mature product structure, stable quality, large machine torque, and excellent fast response characteristics. Whether for small-batch precision processing or large-scale production, it delivers cost-effective and satisfactory results for customers across industries.
Key Features
Precision & Accuracy
Equipped with an optional full closed-loop grating ruler precision feedback system, the DXC Series ensures ultra-high positioning accuracy (0.008 mm/300 mm) and repeatability (0.015-0.016 mm), meeting the strict precision requirements of high-end mechanical processing. The high-rigidity gantry structure and optimized rail design (55 mm roller rails for X/Y axes) further enhance stability during high-speed operation.
Versatile Processing Capabilities
This gantry machining center covers a comprehensive range of processing needs, from basic milling and drilling to complex tapping and countersinking. With optional 4-axis linkage machining, it can handle irregular and complex workpieces with ease, eliminating the need for multiple machine setups and improving production efficiency.
Customizable Configurations
Tailored to different customer requirements, the DXC Series offers flexible configuration options: ATC manipulator tool library for automatic tool change, tool center cooling function for extended tool life, automatic workpiece measurement and automatic tool measurement for reduced manual intervention, and multiple drive modes (Belt/Gearbox/Direct Drive) to adapt to various processing scenarios.
Robust Construction & Performance
Featuring a heavy-duty table with maximum bearing capacity up to 15,000 kg, the machine can handle large and heavy workpieces effortlessly. The BT50 spindle taper (Φ190-200 mm spindle diameter) and 18.5-26 kW main motor power ensure strong cutting force, while the 10-6000 rpm spindle speed range adapts to different material processing needs.
Detailed Specifications
Item | Unit | DXC2520 | DXC3020 | DXC4020 |
Machine Model | - | DXC2520 | DXC3020 | DXC4020 |
Maximum Table Bearing Capacity | kg | 7000 | 8000 | 9000 |
X/Y/Z Stroke | mm | 2700×2000×900 | 3200×2000×900 | 4200×2000×900 |
Gantry Width | mm | 2000 | 2000 | 2000 |
Table Size (L×W) | mm | 2500×1600 | 3000×1600 | 4000×1600 |
Number of T-Slots | No. | 9 | 9 | 9 |
T-Slot Dimensions/Spacing | mm | 28/180 | 28/180 | 28/180 |
Drive Mode (Optional) | - | Belt/Gearbox/Direct Drive | Belt/Gearbox/Direct Drive | Belt/Gearbox/Direct Drive |
Spindle Speed | rpm | 10~6000 | 10~6000 | 10~6000 |
Main Motor Power | kw | 18.5/22 | 18.5/22 | 18.5/22 |
Spindle Nose to Worktable | mm | 200~1100 | 200~1100 | 200~1100 |
Spindle Taper | - | BT50 | BT50 | BT50 |
X/Y/Z Fast Moving Speed | m/min | 12/12/10 | 12/12/10 | 12/12/10 |
Positioning Accuracy | mm | 0.008/300 | 0.008/300 | 0.008/300 |
Repeatability | mm | 0.015 | 0.015 | 0.015 |
CNC System | - | Fanuc/Mitsubishi/Siemens | Fanuc/Mitsubishi/Siemens | Fanuc/Mitsubishi/Siemens |
Machine Weight | T | 33 | 36 | 42 |
Item | Unit | DXC3025 | DXC4025 | DXC5025 |
Machine Model | - | DXC3025 | DXC4025 | DXC5025 |
Maximum Table Bearing Capacity | kg | 10000 | 13000 | 15000 |
X/Y/Z Stroke | mm | 3200×2500×1000 | 4200×2500×1000 | 5200×2500×1000 |
Gantry Width | mm | 2500 | 2500 | 2500 |
Table Size (L×W) | mm | 3000×2000 | 4000×2000 | 5000×1800 |
Number of T-Slots | No. | 11 | 9 | 11 |
T-Slot Dimensions/Spacing | mm | 28/185 | 28/185 | 28/185 |
Drive Mode (Optional) | - | Belt/Gearbox/Direct Drive | Belt/Gearbox/Direct Drive | Belt/Gearbox/Direct Drive |
Spindle Speed | rpm | 10~6000 | 10~6000 | 10~6000 |
Main Motor Power | kw | 22/26 | 22/26 | 22/26 |
Spindle Nose to Worktable | mm | 300~1400 | 300~1400 | 300~1400 |
Spindle Taper | - | BT50 | BT50 | BT50 |
X/Y/Z Fast Moving Speed | m/min | 12/12/10 | 12/12/10 | 12/12/10 |
Positioning Accuracy | mm | 0.008/300 | 0.008/300 | 0.008/300 |
Repeatability | mm | 0.016 | 0.016 | 0.016 |
CNC System | - | Fanuc/Mitsubishi/Siemens | Fanuc/Mitsubishi/Siemens | Fanuc/Mitsubishi/Siemens |
Machine Weight | T | 40 | 46 | 50 |
Application Scenarios
Automotive Manufacturing
Ideal for processing large automotive components such as engine blocks, chassis frames, and transmission casings. The strong cutting force and high precision of the DXC Series ensure consistent quality in mass production.
Mold & Die Industry
Suitable for machining large plastic molds, stamping dies, and die-casting molds. The 4-axis linkage function and high positioning accuracy enable precise shaping of complex mold cavities and surfaces.
Aerospace Engineering
Meets the strict requirements of aerospace component processing, including aircraft structural parts, engine components, and avionics housings. The machine’s stability and customizable configurations adapt to the processing of high-strength materials like titanium alloy and aluminum alloy.
Hardware & Packaging Machinery
Perfect for producing large hardware parts, packaging machine frames, and conveyor systems. The versatile processing functions and efficient operation reduce production cycles and improve cost-effectiveness.
FAQ
What processing functions does the DXC Series Gantry Machining Center support?
It integrates milling, boring, drilling (drilling, expanding, reaming), tapping, countersinking, and optional 4-axis linkage machining, covering most mechanical processing needs.
Can I customize the machine configuration?
Yes, you can choose from full closed-loop grating ruler, ATC manipulator tool library, automatic measurement systems, and different drive modes to match your specific production requirements.
Which CNC systems are compatible with this machine?
The DXC Series supports leading CNC systems including Fanuc, Mitsubishi, and Siemens, ensuring reliable performance and easy operation.
What is the maximum workpiece weight the machine can handle?
The maximum table bearing capacity ranges from 7,000 kg (DXC2520) to 15,000 kg (DXC5025), suitable for large and heavy workpiece processing.
Call to Action
Ready to elevate your production efficiency with a high-performance gantry machining center?
Inquire Now for a customized quote based on your processing needs!
Add to Basket to secure your DXC Series machine and enjoy priority delivery!
Contact our technical team for detailed product demonstrations and technical consultations—we’re here to help you find the perfect processing solution!
