Product Overview

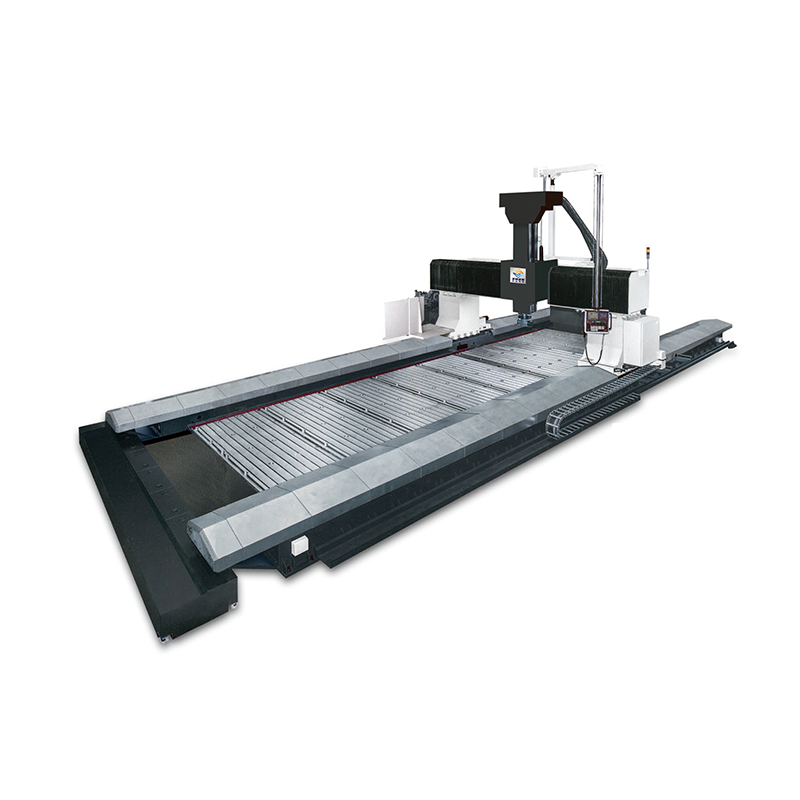

The Column Movable Gantry Milling Center (Models: GMU8040/10040/12040/14040/16040) is a high-performance machining solution designed for large-scale and high-precision workpiece processing. With its innovative crown-type mechanism and fixed table design, this gantry milling center stands out for its space-saving advantage, exceptional load-bearing capacity, and reliable operation—making it an ideal choice for industries requiring efficient and accurate heavy-duty machining. Compared to traditional fixed-column models, it reduces floor space by 40% while maintaining the same travel range, balancing productivity and workspace utilization.
Key Features
Space-Saving Crown-Type Mechanism
The unique crown-type mechanism design is a game-changer for workshops with limited space. By optimizing the structural layout, the machine occupies 40% less floor area than fixed-column counterparts with identical travel parameters, allowing for better workshop layout planning and increased operational flexibility.
Safe & Convenient Low-Center-of-Gravity Column
Equipped with a low center of gravity column structure, the machine ensures stability during high-load operations. Large workpiece loading and unloading become safer and more convenient, minimizing the risk of accidents and improving workflow efficiency—critical for heavy-industry applications.
High-Load Fixed Table
The fixed table design eliminates mechanism wear issues common in moving-table models while providing an impressive table bearing capacity of 15 t/m². This enables the machine to handle ultra-heavy workpieces without compromising precision, meeting the demands of large-part machining.
Safe & Flexible Operating Room
The operating room with protective doors moves synchronously with the beam along the X-axis, combining safety and convenience. Operators can monitor and adjust processes in real time while being shielded from chips and debris, enhancing both operational safety and work efficiency.
Efficient Chip Removal System
Dual chain plate chip removers on both sides of the table deliver excellent chip removal ability, preventing chip accumulation that could affect machining accuracy or damage components. This ensures continuous, uninterrupted operation even during long production runs.
Optional Five-Sided Processing Upgrade
With an optional automatic switching head library, the machine can be upgraded to a five-sided processing center. This versatility allows it to handle complex machining tasks, reducing the need for multiple machines and lowering production costs.
Detailed Specifications
Item | Unit | GMU8040 | GMU10040 | GMU12040 |
Processing Range | - | - | - | - |
X-axis travel | mm | 8500 | 10500 | 12500 |
Y-axis travel | mm | 4400 | 4400 | 4400 |
Z-axis travel | mm | 1250 | 1250 | 1250 |
Effective width of gantry | mm | 4000 | 4000 | 4000 |
Distance from work table to spindle end face | mm | 250~1500 | 250~1500 | 250~1500 |
Workbench | - | - | - | - |
Table size (L×W) | mm | 3000×8000 | 3000×10000 | 3000×12000 |
Table bearing | t/m² | 15 | 15 | 15 |
T-slot specifications (width×spacing×number) | - | 28×250×32 | 28×250×40 | 28×250×48 |
Drive & Spindle | - | - | - | - |
Maximum cutting speed (X/Y/Z) | m/min | 1/1/1 | 1/1/1 | 1/1/1 |
Fast moving speed (X/Y/Z) | m/min | 6/6/6 | 6/6/6 | 6/6/6 |
Maximum spindle speed | rpm | 4500 | 4500 | 4500 |
Spindle power | KW | 22/26 | 22/26 | 22/26 |
Spindle taper hole | - | BT50 | BT50 | BT50 |
Precision | - | - | - | - |
Positioning accuracy (X/Y/Z) | mm | 0.05/0.03/0.02 | 0.055/0.03/0.02 | 0.06/0.03/0.02 |
Repeated positioning accuracy (X/Y/Z) | mm | 0.035/0.02/0.012 | 0.037/0.02/0.012 | 0.045/0.02/0.012 |
Machine Dimensions & Weight | - | - | - | - |
Machine weight | t | 80 | 90 | 100 |
Machine outline dimension (L×W×H) | mm | 18350×8750×6100 | 21350×8750×6100 | 22850×8750×6100 |
Item | Unit | GMU14040 | GMU16040 |
Processing Range | - | - | - |
X-axis travel | mm | 14500 | 16500 |
Y-axis travel | mm | 4400 | 4400 |
Z-axis travel | mm | 1250 | 1250 |
Effective width of gantry | mm | 4000 | 4000 |
Distance from work table to spindle end face | mm | 250~1500 | 250~1500 |
Workbench | - | - | - |
Table size (L×W) | mm | 3000×14000 | 3000×16000 |
Table bearing | t/m² | 15 | 15 |
T-slot specifications (width×spacing×number) | - | 28×250×56 | 28×250×64 |
Drive & Spindle | - | - | - |
Maximum cutting speed (X/Y/Z) | m/min | 1/1/1 | 1/1/1 |
Fast moving speed (X/Y/Z) | m/min | 6/6/6 | 6/6/6 |
Maximum spindle speed | rpm | 4500 | 4500 |
Spindle power | KW | 22/26 | 22/26 |
Spindle taper hole | - | BT50 | BT50 |
Precision | - | - | - |
Positioning accuracy (X/Y/Z) | mm | 0.07/0.03/0.02 | 0.08/0.03/0.02 |
Repeated positioning accuracy (X/Y/Z) | mm | 0.05/0.02/0.012 | 0.055/0.02/0.012 |
Machine Dimensions & Weight | - | - | - |
Machine weight | t | 110 | 120 |
Machine outline dimension (L×W×H) | mm | 25850×8750×6100 | 27850×8750×6100 |
Application Scenarios
Heavy Machinery Manufacturing
Ideal for machining large structural components such as machine bases, frames, and beams—thanks to its high load-bearing capacity and long X-axis travel (up to 16500 mm).
Aerospace Component Processing
Precision positioning (≤0.08 mm X-axis positioning accuracy) and stable spindle performance make it suitable for processing aerospace parts like aircraft structural frames and engine mounts.
Mold & Die Industry
With optional five-sided processing, the machine handles large mold cavities and cores efficiently, reducing setup time and improving mold precision.
Energy Equipment Production
Suitable for machining components of wind turbines, hydraulic turbines, and other energy equipment, where large size and high precision are critical.
FAQ
What makes the column movable design better than fixed-column models?
The column movable design reduces floor space by 40% while maintaining the same travel range, and its low center of gravity enhances stability during heavy-load operations. It also simplifies large workpiece loading/unloading compared to fixed-column alternatives.
Can the machine support automatic tool changing?
Yes—with the optional automatic switching head library, the machine can switch tools automatically and be upgraded to a five-sided processing center, adapting to complex machining needs.
What is the maximum workpiece weight the table can handle?
The table bearing capacity is 15 t/m². For example, the GMU16040’s 3000×16000 mm table can support ultra-heavy workpieces for industrial-scale applications.
Does the machine meet international precision standards?
Yes, it complies with GB/T19362.1-2003, ensuring reliable positioning and repeated positioning accuracy for high-quality machining.
