Product Overview

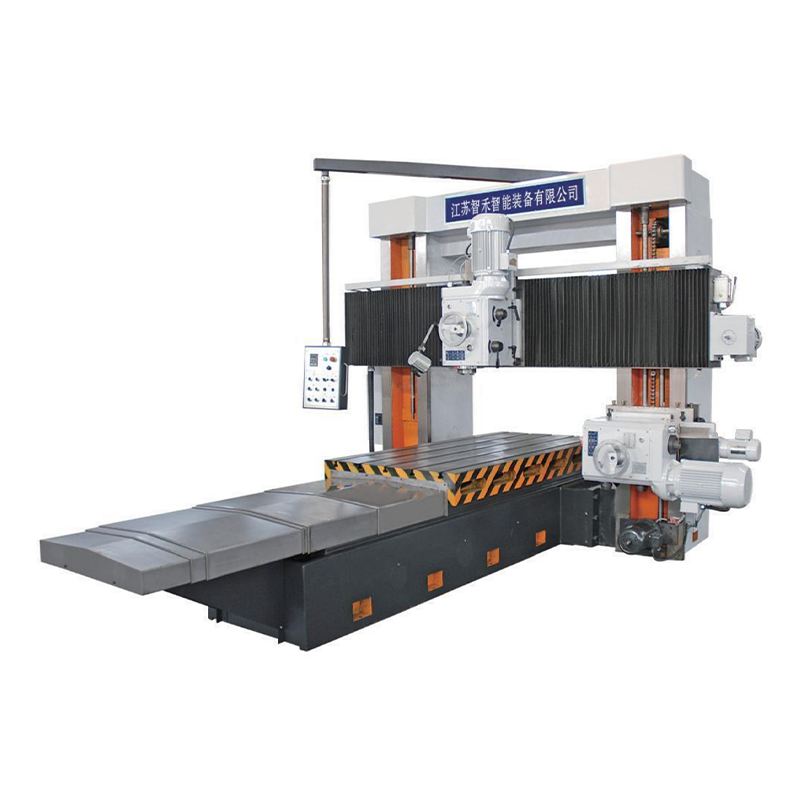

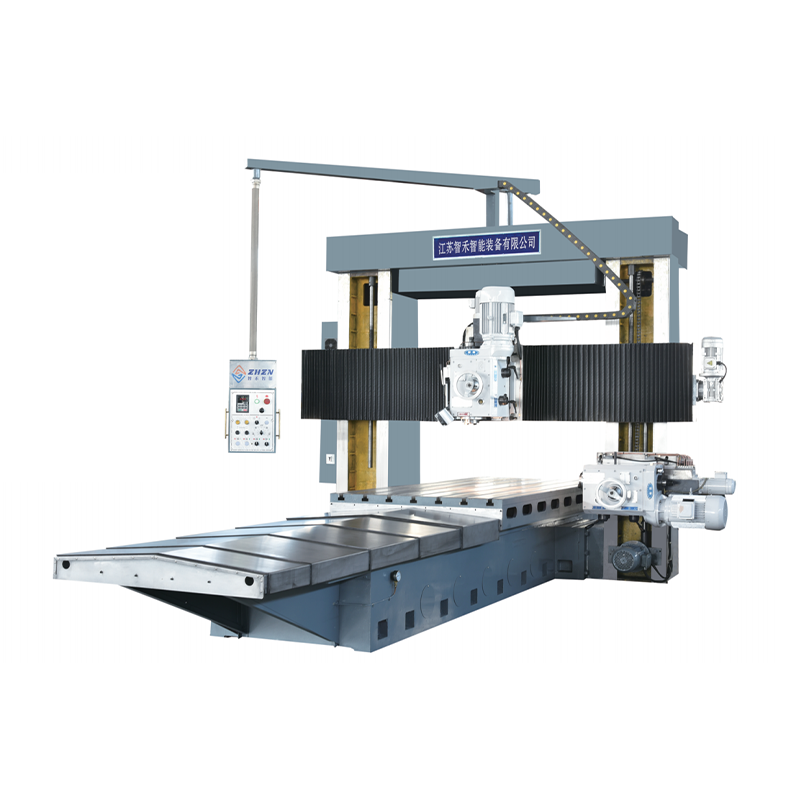

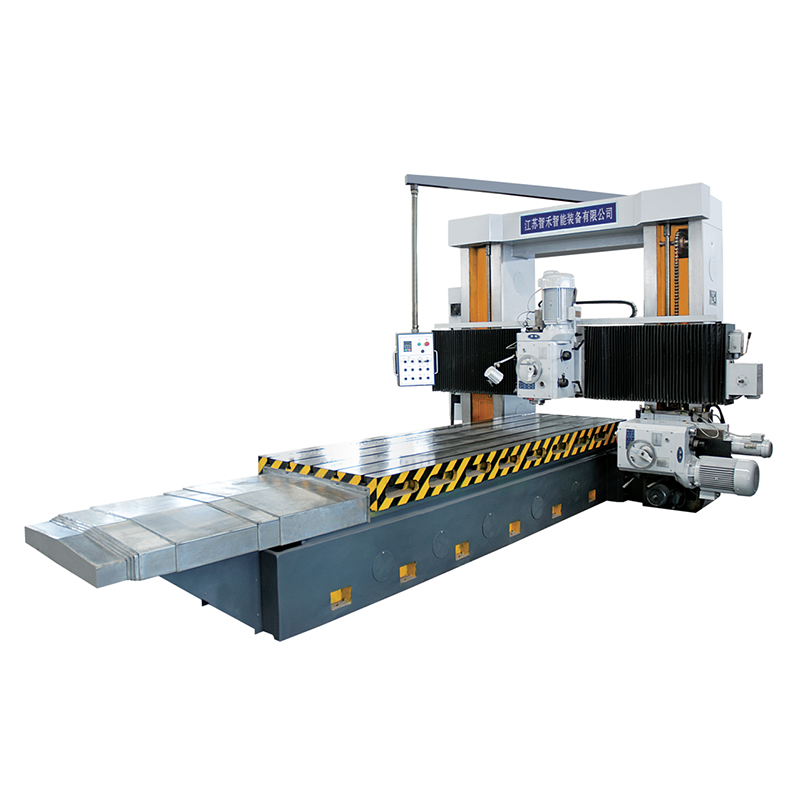

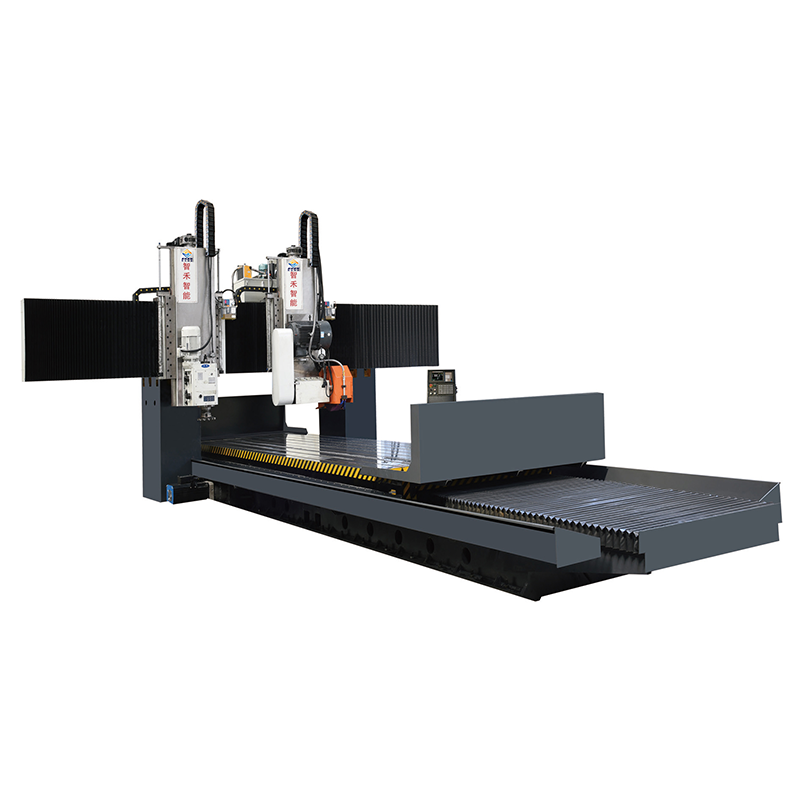

The X2012/X2016 Series Gantry Milling Machine (Models: X2012A/X2012B/X2016A/X2016B/X2016C) by Jiangsu Zhihe Intelligent Equipment Co., Ltd. is a versatile and reliable machining solution designed for medium to large workpieces. Combining power-driven horizontal and vertical feeding with precise cutting performance, this gantry milling machine excels in plane, bevel, and groove machining across diverse industries. With optional digital readout (DRO) and a compact, durable design, it balances flexibility, efficiency, and affordability—making it a top choice for small to medium-sized enterprises and large-scale production facilities alike.
Key Features
Versatile Machining Sizes
Covering a wide range of maximum machining sizes (3000×1550×1100 mm to 6000×2000×1500 mm), the X2012/X2016 Series adapts to small, medium, and large workpieces. Whether you need to process compact components (X2012A) or large structural parts (X2016C), this series offers a tailored solution.
Reliable Power System
Equipped with 5.5-11 Kw worktable feed motors and 7.5 Kw vertical/side milling head motors, the machine delivers consistent power for efficient cutting. The uniform motor configuration across models ensures stable performance and easy maintenance.
Power-Driven Feeding Mechanism
Horizontal and vertical feeds are power-driven, reducing manual labor and improving machining accuracy. The smooth feeding operation minimizes human error, ensuring consistent surface finish and dimensional precision.
Optional Digital Readout (DRO)
Customize your machine with an optional digital readout (DRO) for real-time position monitoring. The DRO enhances precision by providing accurate measurements, simplifying setup and reducing machining errors.
Compact & Durable Design
With machine weights ranging from 25,000 to 48,000 Kg and overall dimensions optimized for space efficiency, the X2012/X2016 Series fits seamlessly into most workshops. Its robust construction ensures long service life and resistance to heavy-duty operation.
Consistent Precision Performance
Featuring 6-level spindle speed range (82-506 r/min) and stepless feed speed adjustment, the machine maintains precision across different cutting tasks. The 28 mm wide T-slots (5-7 slots) provide secure workpiece clamping, further enhancing machining stability.
Detailed Specifications
Technical Specifications | Description | Unit | X2012A | X2012B |
Maximum Machining Size (L x W x H) | Max. Processing Capacity | mm | 3000×1550×1100 | 4000×1550×1300 |
Distance Between Two Columns | Distance Between Columns | mm | 1600 | 1600 |
Worktable Dimensions (L x W) | Size of Worktable | mm | 3000×1250 | 4000×1250 |
Worktable Feed Motor Power | Power of Feed Motor | kw | 5.5 | 7.5 |
Vertical Milling Head Motor Power | Power of Vertical Milling Head Motor | kw | 7.5 | 7.5 |
Side Milling Head Motor Power | Power of Side Milling Head Motor | kw | 7.5 | 7.5 |
Number of Milling Heads | Number of Milling Head | piece | 2 | 2 |
Milling Feed Speed | Speed of Milling | - | Stepless step change | Stepless step change |
Spindle Speed Range | Range of Spindle Speed | r/min | 6 levels (82-506) | 6 levels (82-506) |
Number of T-Slots | Number of T-Slots | - | 5 | 5 |
T-Slot Width | Width of T-Slot | mm | 28 | 28 |
Machine Capacity | Max. Load | kg | 10000 | 12000 |
Machine Weight | Weight of Machine | kg | 25000 | 30000 |
Machine Overall Dimensions (L x W x H) | Overall Dimensions | mm | 8000×3500×3000 | 10000×3500×3200 |
Technical Specifications | Description | Unit | X2016A | X2016B |
Maximum Machining Size (L x W x H) | Max. Processing Capacity | mm | 3000×2000×1300 | 4000×2000×1300 |
Distance Between Two Columns | Distance Between Columns | mm | 2100 | 2100 |
Worktable Dimensions (L x W) | Size of Worktable | mm | 3000×1600 | 4000×1600 |
Worktable Feed Motor Power | Power of Feed Motor | kw | 7.5 | 7.5 |
Vertical Milling Head Motor Power | Power of Vertical Milling Head Motor | kw | 7.5 | 7.5 |
Side Milling Head Motor Power | Power of Side Milling Head Motor | kw | 7.5 | 7.5 |
Number of Milling Heads | Number of Milling Head | piece | 2 | 2 |
Milling Feed Speed | Speed of Milling | - | Stepless step change | Stepless step change |
Spindle Speed Range | Range of Spindle Speed | r/min | 6 levels (82-506) | 6 levels (82-506) |
Number of T-Slots | Number of T-Slots | - | 7 | 7 |
T-Slot Width | Width of T-Slot | mm | 28 | 28 |
Machine Capacity | Max. Load | kg | 10000 | 12000 |
Machine Weight | Weight of Machine | kg | 28000 | 32000 |
Machine Overall Dimensions (L x W x H) | Overall Dimensions | mm | 8000×4000×3200 | 10000×4000×3200 |
Technical Specifications | Description | Unit | X2016C |
Maximum Machining Size (L x W x H) | Max. Processing Capacity | mm | 6000×2000×1500 |
Distance Between Two Columns | Distance Between Columns | mm | 2100 |
Worktable Dimensions (L x W) | Size of Worktable | mm | 6000×1600 |
Worktable Feed Motor Power | Power of Feed Motor | kw | 11 |
Vertical Milling Head Motor Power | Power of Vertical Milling Head Motor | kw | 7.5 |
Side Milling Head Motor Power | Power of Side Milling Head Motor | kw | 7.5 |
Number of Milling Heads | Number of Milling Head | piece | 2 |
Milling Feed Speed | Speed of Milling | - | Stepless step change |
Spindle Speed Range | Range of Spindle Speed | r/min | 6 levels (82-506) |
Number of T-Slots | Number of T-Slots | - | 7 |
T-Slot Width | Width of T-Slot | mm | 28 |
Machine Capacity | Max. Load | kg | 15000 |
Machine Weight | Weight of Machine | kg | 48000 |
Machine Overall Dimensions (L x W x H) | Overall Dimensions | mm | 14000×4000×3500 |
Application Scenarios
General Machinery Manufacturing
Ideal for processing components such as gears, shafts, and housings in agricultural machinery, textile machinery, and food processing equipment. The versatile size range caters to diverse production needs.
Automotive Parts Processing
Suitable for milling engine blocks, chassis components, and transmission parts. The power-driven feeding and precise spindle control ensure consistent quality for high-volume automotive production.
Lightweight Steel Structure Fabrication
Perfect for machining thin to medium-thick steel structures used in shelves, frames, and decorative steel products. The compact design and efficient cutting make it a cost-effective choice for small to medium-scale fabricators.
Tool & Die Making
Used for producing medium-sized molds, dies, and jigs. The optional DRO enhances precision, while the dual milling heads enable multi-process machining, reducing production time for tooling.
Furniture & Hardware Manufacturing
Suitable for milling wooden or metal furniture frames, hardware accessories, and decorative components. The adjustable speed settings and secure clamping ensure smooth surface finish for aesthetic products.
FAQ
What is the main difference between the X2012 and X2016 Series?
The X2012 Series is designed for smaller workpieces (max. machining size 3000-4000×1550 mm) with 5 T-slots, while the X2016 Series handles larger workpieces (3000-6000×2000 mm) with 7 T-slots and a wider column distance (2100 mm vs. 1600 mm).
Can the machine be used for high-volume production?
Yes. The power-driven feeding, stable performance, and efficient cutting speed make it suitable for continuous high-volume production. The durable design minimizes downtime for maintenance.
Is the digital readout (DRO) included as standard?
No, the DRO is an optional accessory. You can add it during purchase or upgrade later based on your precision requirements.
What are the installation requirements for the machine?
The machine requires a flat, reinforced concrete foundation (minimum thickness: 200 mm) to support its weight. We provide installation guidelines and optional on-site installation services.
How long is the delivery time for the X2012/X2016 Series?
Standard delivery time is 30-45 working days. For customized models or urgent orders, please contact our sales team to confirm the lead time.
