Product Overview

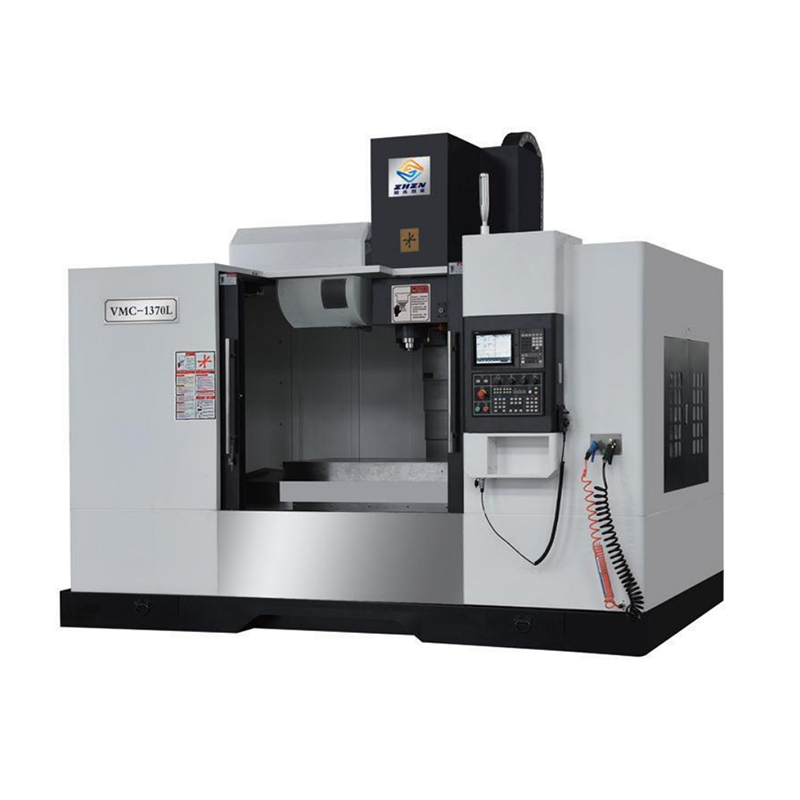

The Vertical Linear Machining Center Series (models: VMC-850L/960L/1060L/1160L/VMC-1270L/1370L/1375L/1380L/VMC-1580L/1690L/1890L) is a high-performance CNC machining solution designed for precision manufacturing across diverse industries. Engineered with robust construction and advanced motion control technology, this series delivers exceptional rigidity, stability, and efficiency, making it ideal for processing a wide range of materials—from aluminum and steel to high-strength alloys. Whether handling small-batch production or large-scale machining tasks, these vertical machining centers ensure consistent accuracy and reduced non-processing time, empowering manufacturers to meet strict production demands.
Key Features
Robust Bed Structure for High-Speed Stability
The machine’s heavy-duty bed structure is engineered to withstand the inertia generated by high-speed movement, eliminating vibration and ensuring stable operation even during intensive machining processes. This structural integrity is critical for maintaining precision in high-velocity cutting scenarios.
High-Rigidity Axis Configuration
X/Y Axis: Equipped with high-rigidity precision linear guide rails paired with high-precision C3 level ball screws. Driven by AC CNC servo motors with high torque, low noise, and high stability, the axes provide adjustable speeds tailored to different material processing requirements.
Z Axis: Features a hard rail design that significantly enhances Z-axis machining rigidity, enabling more powerful cutting performance for thick workpieces or tough materials.
Time-Saving Fast Displacement Adjustment
With fast displacement adjustment capabilities, the series reduces non-processing time by up to 50%. This efficiency boost translates to higher throughput and lower production costs, a key advantage for competitive manufacturing environments.
Heightened Column for Flexible Expansion
The heightened column design reserves space for the installation of the fourth and fifth axes, offering enhanced versatility for complex machining tasks such as multi-sided processing and contour milling.
Stable Transmission System
Precision ball screws are closely matched with high-speed, high-load linear tracks and couplings, ensuring consistent stability and accuracy throughout the machining process—even under heavy workloads.
Detailed Specifications
Item | Unit | VMC-850L | VMC-960L | VMC-1060L | VMC-1160L |
X-axis travel | mm | 800 | 900 | 1000 | 1100 |
Y-axis travel | mm | 500 | 600 | 600 | 600 |
Z-axis travel | mm | 500 | 500（700） | 600 | 600 |
Distance from spindle end face to work surface | mm | 110~610 | 120~620 | 70~670 | 70~670 |
Table size | mm | 1000×500 | 1050×600 | 1300×600 | 1200×600 |
Maximum bearing capacity | kg | 600 | 600 | 800 | 800 |
Taper specification | - | BT40 | BT40 | BT40 | BT40/BT50 |
Spindle speed (optional) | rpm/min | 8000 | 8000 | 8000 | 8000 |
Spindle motor | kw | 7.5 | 7.5/11 | 7.5/11 | 11/15 |
Control system (optional) | - | Mitsubishi / Fanuc / Siemens |
|
|
|
Positioning accuracy | mm | JIS±0.005/300 |
|
|
|
Tool storage capacity | Bundle | 24 | 24 | 24 | 24 |
Item | Unit | VMC-1270L | VMC-1370L | VMC-1375L | VMC-1380L |
X-axis travel | mm | 1200 | 1300 | 1300 | 1300 |
Y-axis travel | mm | 700 | 700 | 750 | 800 |
Z-axis travel | mm | 600 | 650 | 700 | 700 |
Distance from spindle end face to work surface | mm | 150~750 | 190~890 | 100~800 | 100~800 |
Table size | mm | 1360×700 | 1400×700 | 1400×750 | 1400×800 |
Maximum bearing capacity | kg | 1000 | 1000 | 1000 | 1000 |
Taper specification | - | BT50 | BT50 | BT50 | BT50 |
Spindle speed (optional) | rpm/min | 8000 | 8000 | 8000 | 8000 |
Spindle motor | kw | 11/15 | 11/15 | 15 | 15 |
Control system (optional) | - |
|
|
|
|
Positioning accuracy | mm |
|
|
|
|
Tool storage capacity | Bundle | 24 | 24 | 24 | 24 |
Item | Unit | VMC-1580L | VMC-1690L | VMC-1890L |
X-axis travel | mm | 1500 | 1600 | 1800 |
Y-axis travel | mm | 800 | 900 | 900 |
Z-axis travel | mm | 700 | 600 | 600 |
Distance from spindle end face to work surface | mm | 120~820 | 105~705 | 115~835 |
Table size | mm | 1700×800 | 1800×900 | 2000×900 |
Maximum bearing capacity | kg | 1500 | 1600 | 1600 |
Taper specification | - | BT50 | BT50 | BT50 |
Spindle speed (optional) | rpm/min | 8000 | 8000 | 8000 |
Spindle motor | kw | 15/18.5 | 15/18.5 | 15/18.5 |
Control system (optional) | - |
|
|
|
Positioning accuracy | mm |
|
|
|
Tool storage capacity | Bundle | 24 | 24 | 24 |
Application Scenarios
Automotive Parts Manufacturing
Ideal for machining engine components, transmission parts, and chassis accessories—thanks to high torque, precision positioning, and compatibility with automotive-grade materials like steel and aluminum alloys.
Mold & Die Processing
The Z-axis hard rail rigidity and C3-level ball screws ensure precise contouring and deep cutting, making the series suitable for mold bases, cavity inserts, and die-casting molds.
Aerospace Component Fabrication
Meets the strict accuracy requirements for aerospace parts (e.g., brackets, fasteners, and structural components) with JIS-certified positioning accuracy and stable high-speed operation.
General Machinery Production
Versatile enough for machining gears, shafts, housings, and other general mechanical parts, supporting small-batch customization and large-scale mass production.
FAQ
What control systems are available for this series?
The Vertical Linear Machining Center Series offers three optional CNC control systems: Mitsubishi, Fanuc, and Siemens—all industry-leading solutions for reliable motion control and easy programming.
Can the machine support 4th and 5th axis installation?
Yes. The heightened column design reserves dedicated space for 4th and 5th axis installation, enabling multi-axis machining for complex workpieces.
What is the maximum material thickness the Z-axis can handle?
Z-axis travel ranges from 500mm to 700mm (varies by model), with the VMC-1375L and VMC-1380L offering the largest 700mm Z-stroke for thick workpieces.
How does the machine reduce non-processing time?
Fast displacement adjustment technology cuts non-processing time by 50%, streamlining setup, tool changes, and workpiece positioning.
