Product Overview

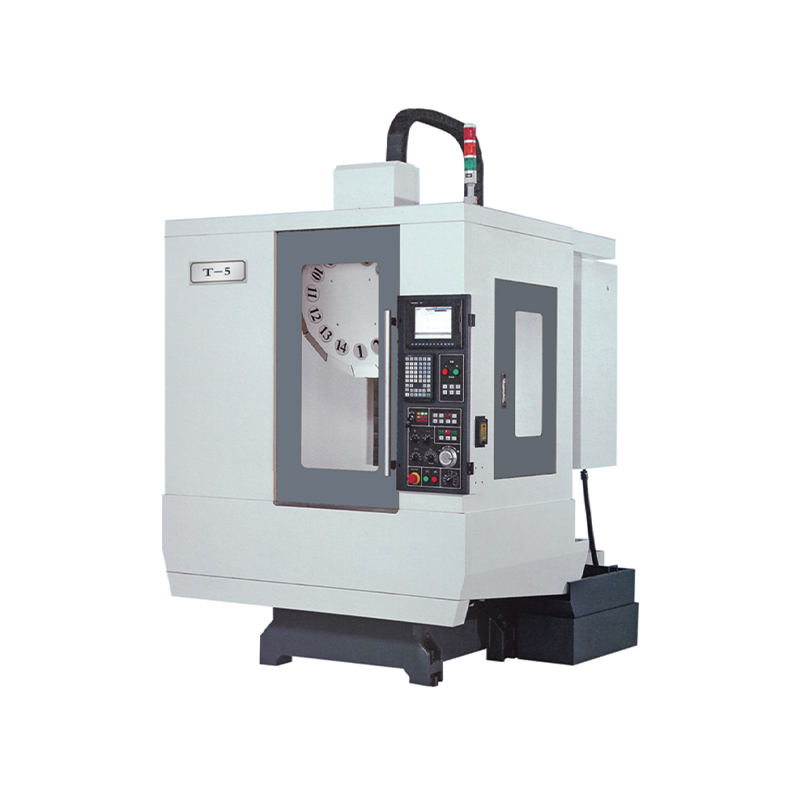

The High-speed Drilling And Tapping Machine Series (models T-5/T-6/T-8/T-10) is a cutting-edge precision machining solution engineered for efficiency, accuracy, and reliability. Designed to meet the demands of modern manufacturing, this series integrates advanced technologies such as an ATC turret automatic tool change system, stable structural design, and high-speed displacement capabilities. Whether for batch production of small precision parts or continuous processing of mechanical components, these machines deliver consistent performance, reducing cycle times while ensuring superior machining quality. With a user-friendly conversational interface and versatile configuration options, they are suitable for both small workshops and large-scale manufacturing facilities.
Key Features
ATC Automatic Tool Change System
Equipped with a high-performance ATC turret automatic tool change device, the machine achieves a rapid tool change (knife to knife) time of just 1.4 seconds. This feature minimizes non-processing time, enabling continuous and efficient production, especially for complex parts requiring multiple tool changes.
Stable Structural Design
The series boasts a large, stable column that resists deformation even during high-speed operation, paired with a large-span base and solid six-point support structure. This combination eliminates vibration and deformation during high-speed displacement, ensuring consistent precision across long production runs.
Exceptional High-Speed Displacement
With a three-axis fast moving speed of 48m/min, the High-speed Drilling And Tapping Machine significantly reduces positioning time between machining steps. This high-speed performance translates to higher throughput and shorter production cycles, enhancing overall operational efficiency.
High Precision & User-Friendly Operation
Adhering to strict JIS standards, the machine offers a positioning accuracy of ±0.005mm/300mm and repeated positioning accuracy of ±0.003mm/300mm, guaranteeing precise machining results. The humanized conversational interface simplifies programming and operation, reducing the learning curve for operators and minimizing operational errors.
Optimal Chip Removal
Featuring a back-row chip removal design with the best chip removal angle and a large-flow chip flushing system, the machine effectively clears chips during processing. This prevents chip accumulation, protects the spindle and workpieces, and maintains stable machining conditions for extended periods.
Detailed Specifications
Item | Unit | T-5 | T-6 |
X-axis travel | mm | 500 | 600 |
Y-axis travel | mm | 400 | 400 |
Z-axis travel | mm | 300 | 300 |
Distance from spindle end face to work surface | mm | 200~500 | 200~500 |
Distance from spindle center to column protection surface | mm | 420 | 420 |
Table size (L×W) | mm | 620×420 | 700×420 |
Maximum bearing capacity | kg | 250 | 300 |
Table T-slot (Number×size×spacing) | mm | 3~18/125 | 3~18/125 |
Taper specification | - | BT30 | BT30 |
Spindle speed (Standard) | rpm/min | 20000 | 20000 |
Spindle motor power | kw | 5.5 | 5.5 |
Three-axis motor (X/Y/Z) power | kw | 1.5/1.5/3.0 | 1.5/1.5/3.0 |
Control system (Optional) | - | Mitsubishi / Fanuc / Siemens | Mitsubishi / Fanuc / Siemens |
X,Y,Z axis fast moving speed | m/min | 48/48/48 | 48/48/48 |
Positioning accuracy | mm | JIS±0.005/300 | JIS±0.005/300 |
Repeated positioning accuracy | mm | JIS±0.003/300 | JIS±0.003/300 |
Atmospheric pressure | kg/cm² | ≥6 | ≥6 |
Tool storage capacity | Bundle | 14 | 14 |
Machine weight | T | 3.2 | 3.6 |
Machine size (L×W×H) | mm | 1800×2300×2700 | 1900×2350×2750 |
Item | Unit | T-8 | T-10 |
X-axis travel | mm | 800 | 1000 |
Y-axis travel | mm | 500 | 500 |
Z-axis travel | mm | 300 | 330 |
Distance from spindle end face to work surface | mm | 150~480 | 150~480 |
Distance from spindle center to column protection surface | mm | 546 | 546 |
Table size (L×W) | mm | 1000×500 | 1100×500 |
Maximum bearing capacity | kg | 350 | 350 |
Table T-slot (Number×size×spacing) | mm | 3~18/125 | 5~18/125 |
Taper specification | - | BT30 | BT30 |
Spindle speed (Standard) | rpm/min | 20000 | 20000 |
Spindle motor power | kw | 5.5 | 5.5 |
Three-axis motor (X/Y/Z) power | kw | 1.5/1.5/3.0 | 1.5/1.5/3.0 |
Control system (Optional) | - | Mitsubishi / Fanuc / Siemens | Mitsubishi / Fanuc / Siemens |
X,Y,Z axis fast moving speed | m/min | 48/48/48 | 48/48/48 |
Positioning accuracy | mm | JIS±0.005/300 | JIS±0.005/300 |
Repeated positioning accuracy | mm | JIS±0.003/300 | JIS±0.003/300 |
Atmospheric pressure | kg/cm² | ≥6 | ≥6 |
Tool storage capacity | Bundle | 14 | 14 |
Machine weight | T | 4.3 | 4.8 |
Machine size (L×W×H) | mm | 2100×2450×3100 | 2300×2950×3300 |
Application Scenarios
Automotive Parts Manufacturing
Ideal for drilling and tapping precision components such as engine brackets, transmission parts, and sensor housings. The high speed and accuracy of the machine meet the strict quality requirements of the automotive industry.
Electronic Equipment Production
Suitable for processing small, high-precision parts in electronic devices, including smartphone casings, computer hardware, and electronic connectors. The machine’s precise positioning ensures consistency in micro-machining tasks.
Hardware & Fastener Processing
Efficiently handles batch production of screws, nuts, bolts, and other hardware fasteners. The rapid tool change and high-speed displacement capabilities maximize productivity for high-volume orders.
Machinery Component Fabrication
Perfect for machining mechanical parts such as gears, shafts, and brackets used in industrial machinery. The stable structure and chip removal system ensure reliable performance for long-term processing.
FAQ
What is the tool change time of the ATC turret?
The ATC turret offers a quick tool change (knife to knife) time of 1.4 seconds, minimizing downtime and enabling continuous processing.
Which control systems are compatible with these machines?
The series supports optional control systems including Mitsubishi, Fanuc, and Siemens, allowing customization based on your operational preferences and production needs.
What is the maximum workpiece weight the machine can handle?
The maximum bearing capacity ranges from 250kg (T-5) to 350kg (T-8/T-10), accommodating a wide range of workpiece sizes and weights.
How does the chip removal system work?
The machine uses a back-row chip removal design with an optimal chip removal angle and large-flow chip flushing system, efficiently clearing chips to maintain a clean machining environment.
