Product Overview

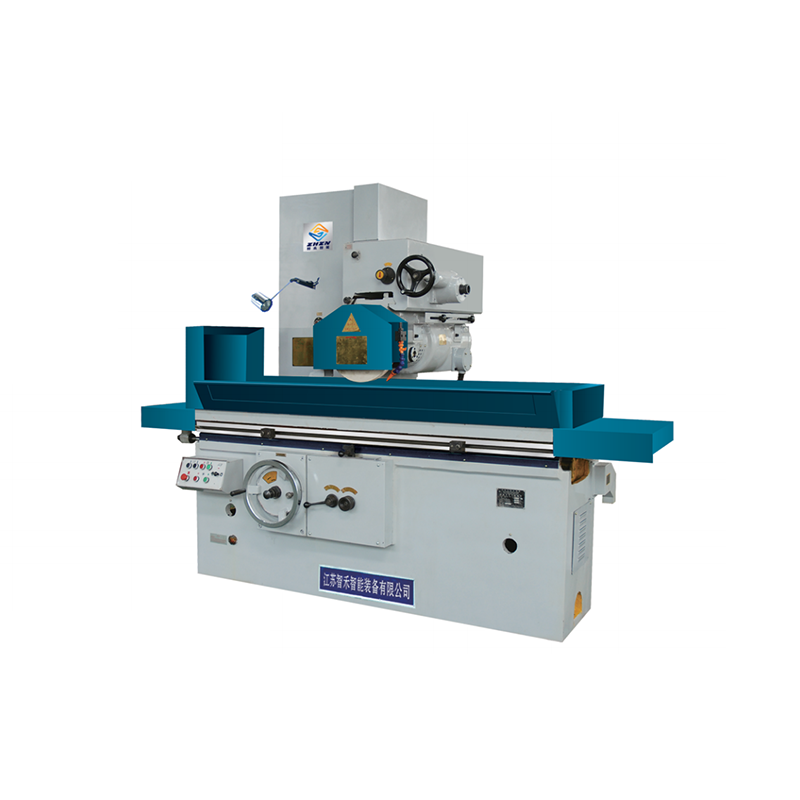

The M7132×7140 Head Movable Surface Grinder (Models: M7130, M7132, M7140) is a horizontal spindle reciprocating table grinder manufactured by Jiangsu Zhihe Intelligent Equipment Co., Ltd. Compliant with Q/320601CK07-2004 accuracy standards, this head-movable grinder combines durability, precision, and user-friendliness. Available in normal and heavy-duty variants, it caters to both standard and high-load grinding tasks. Its unique head-moving design, plastic-laminated guideways, and advanced hydraulic system make it a top choice for industries seeking reliable surface grinding with exceptional surface finish and dimensional stability.
Key Features
Premium Build Quality
Machine main body crafted from HT250 cast iron, twice-tempered to reduce brittleness and enhance structural stability.
Worktable guideway with plastic lamination minimizes friction, reducing wear and improving machining accuracy.
Dual-Variant Design (Normal & Heavy-Duty)
Normal type: Round grinding head, 400×40×127mm grinding wheel, suitable for standard grinding tasks (0.03~0.05mm per pass).
Heavy-duty type: Square grinding head with ball screw (no extra lubrication needed), 400×50×203mm grinding wheel, and reinforced spindle for deep grinding (0.03~0.2mm per pass).
High-Precision Grinding Performance
Achieves surface roughness of Ra:0.63μm and machining accuracy of 0.008mm/300mm, meeting strict industrial standards.
Vertical handwheel feed (0.01mm per grad; 1mm per revolution) enables precise depth control.
Efficient Hydraulic & Motor Systems
Independent hydraulic oil station (optional) ensures smooth longitudinal and transverse movement.
Total motor power of 11kw (7.5kw spindle motor + 3kw oil pump motor) delivers strong grinding force.
Complete Accessory Package
Includes coolant mechanism, magnetic chuck (400×1000mm), grinding wheel set, balance tools, and maintenance wrenches—ready for immediate use.
Detailed Specifications
Description | Unit | M7130 | M7132 | M7140 |
Size of Worktable (L×W×H) | mm | 1000×300×400 | 1000×320×400 | 1000×400×400 |
Max. Longitudinal Movement of Worktable | mm | 1100 | 1100 | 1100 |
Max. Cross Movement of Grinding Head | mm | 350 | 370 | 450 |
Distance from Spindle Centerline to Worktable Surface | mm | 580 | 580 | 580 |
Vertical Handwheel Feed (Per Grad / Per Revolution) | mm | 0.01 / 1 | 0.01 / 1 | 0.01 / 1 |
Rapid Lifting Motor (Power / Speed) | Kw / r/min | 0.37 / 1440 | 0.37 / 1440 | 0.37 / 1440 |
Grinding Wheel Dimensions (D×d×w) | mm | Ф350×40×127 | Ф350×40×127 | Ф350×40×127 |
Grinding Wheel Speed | r/min | 1440 | 1440 | 1440 |
Total Motor Power | Kw | 11 | 11 | 11 |
Processing Accuracy (300mm) | mm | 0.008 | 0.008 | 0.008 |
Surface Roughness | μm | Ra:0.63 | Ra:0.63 | Ra:0.63 |
Net Weight / Gross Weight | Kg | 3680 / 4000 | 3980 / 4200 | 4100 / 4600 |
Packaging Dimensions (L×W×H) | mm | 2800×1750×2350 | 2800×1750×2350 | 2800×1750×2350 |
Application Scenarios
Mold & Die Making
Finishes mold surfaces, ensuring smooth cavity walls and precise dimensional accuracy for plastic and metal molds.
Mechanical Component Processing
Grinds flat surfaces of gears, shafts, and brackets, facilitating tight-fit assembly in machinery production.
Automotive Parts Manufacturing
Processes engine components, steering parts, and chassis components, meeting the automotive industry’s high-reliability requirements.
Tool & Fixture Production
Manufactures and sharpens cutting tools, jigs, and fixtures, maintaining their cutting performance and precision.
Precision Hardware Fabrication
Ideal for small to medium-sized precision hardware (nuts, bolts, shafts) requiring consistent surface finish.
FAQ
What is the difference between normal and heavy-duty models?
Heavy-duty models feature a square grinding head with ball screw (no extra lubrication), larger grinding wheel (400×50×203mm), reinforced spindle, and higher grinding capacity (0.030.2mm per pass) vs. normal models (0.030.05mm per pass).
Does the quotation include an independent hydraulic station?
Standard quotes (FOB Shanghai: 30000USD for normal type; 31200USD for heavy-duty type) do not include an independent hydraulic station. It can be added as an optional accessory—contact us for a customized quote.
What is the delivery time?
Delivery takes 30 days from the date of advance payment (30% TT). The balance is due via TT against inspection in China.
Can the machine be customized for larger worktables?
Yes. We offer custom worktable sizes (e.g., 400×1250mm, 400×2000mm, 400×3000mm). Let us know your requirements for a tailored solution.
Call to Action
Upgrade your grinding operations with the M7132×7140 Head Movable Surface Grinder—the perfect blend of precision, durability, and efficiency. Take action now to:
Request a detailed quotation for normal or heavy-duty variants.
Discuss custom worktable sizes and optional accessories (independent hydraulic station).
Schedule a technical consultation with our grinding experts.
Click "Inquire" or email sales@zhiheintelligent.com to get started. We offer competitive FOB Shanghai pricing and reliable after-sales support—don’t miss out on this high-performance grinding solution!
