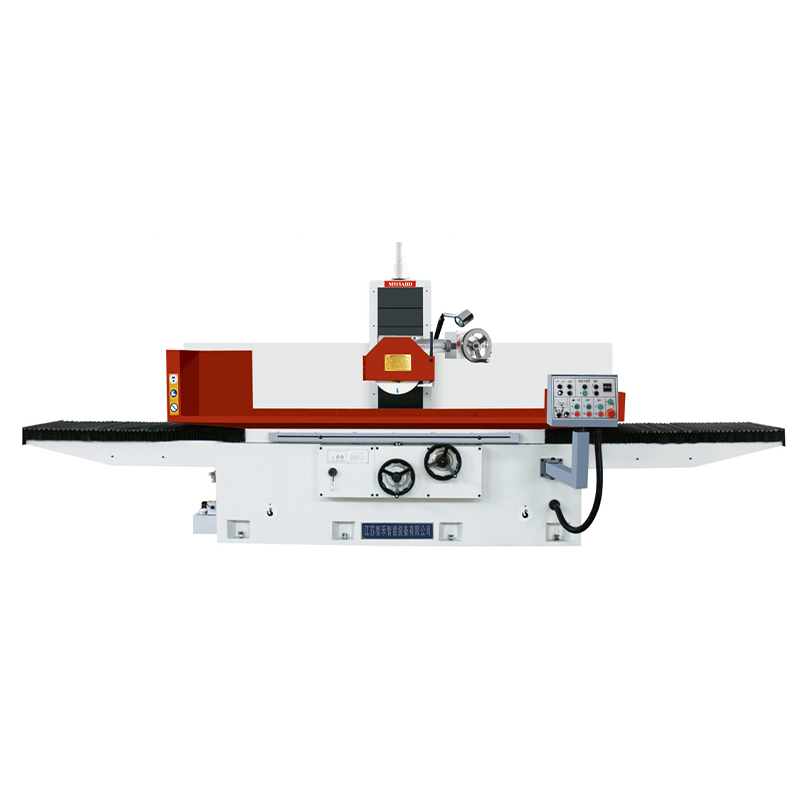

Product Overview
Designed for heavy-duty industrial applications, this column-movable grinder stands out with its stable structure, accurate positioning, and versatile operation. It integrates advanced hydraulic and automatic feeding systems to deliver consistent grinding results for large and medium-sized workpieces. Whether handling batch production or custom machining, this machine meets the rigorous demands of precision manufacturing, making it a reliable choice for industries requiring high surface finish and dimensional accuracy.
Key Features
Precision-Centric Engineering
Equipped with a high-precision spindle and vertical handwheel feed (0.002mm per grad), ensuring ultra-fine grinding control.
Worktable guideway and spindle assembly are optimized for minimal vibration, achieving exceptional machining accuracy.
Heavy-Duty Load Capacity
Worktable load ranges from 800kgs to 1500kgs, accommodating large, heavy workpieces without compromising stability.
Robust HT steel frame structure enhances rigidity, supporting long-term continuous operation under high-load conditions.
Efficient Feeding Systems
Dual feeding modes: Manual crossfeed (0.02mm per grad) and automatic crossfeed (0.5~12mm), adapting to diverse grinding needs.
Rapid traverse rate (1250mm/min at 50HZ; 1500mm/min at 60HZ) reduces non-productive time, boosting overall efficiency.
Versatile Worktable Configurations
Multiple worktable sizes (500×1000mm to 600×2000mm) to fit different workpiece dimensions.
3×16mm T-slots for secure workpiece clamping, ensuring stability during grinding.
Integrated Auxiliary Systems
Built-in dust collection motor (550w) and coolant motor (90w) to maintain a clean working environment and extend grinding wheel life.
Independent hydraulic motor (2.2kw~5.5kw) ensures smooth, consistent table and saddle movement.
Detailed Specifications
Technical Parameters | Unit | M510AHR/AHD | M515AHR/AHD | M615AHR/AHD | M620AHR/AHD |
Working Surface of Table | mm | 500×1000 (20×40") | 500×1500 (20×60") | 600×1500 (24×60") | 600×2000 (24×80") |
Max. Table Travel (Left-Right) | mm | 1140 | 1600 | 1600 | 2230 |
Max. Cross Travel (Front-Back) | mm | 540 | 540 | 650 | 650 |
Distance Between Table Surface and Spindle Center | mm | 590 | 590 | 600 | 600 |
Max. Table Load | kgs | 800 | 1000 | 1200 | 1500 |
T-Slot (Number×Width) | mm | 3×16 | 3×16 | 3×16 | 3×16 |
Table Speed | m/min | 8~25 | 8~25 | 8~25 | 8~25 |
Automatic Crossfeed of Saddle | mm | 0.5~12 | 0.5~12 | 0.5~12 | 0.5~12 |
Grinding Wheel Dimensions | mm | 355×40×127 | 355×40×127 | 400×50×127 | 400×50×127 |
Spindle Speed (50HZ/60HZ) | rpm | 1450/1740 | 1450/1740 | 1450/1740 | 1450/1740 |
Spindle Motor Power | kw | 7.5 | 7.5 | 7.5 | 7.5 |
Net Weight / Gross Weight | kgs | 5000/6000 | 6000/7000 | 7250/8250 | 8500/9700 |
Application Scenarios
Machinery Manufacturing
Ideal for grinding the surfaces of machine tool beds, brackets, and housings, ensuring precise assembly and operation.
Mold & Die Processing
Suitable for finishing mold bases, cavities, and cores made of carbon steel, alloy steel, and other hard materials.
Automotive Component Production
Grinds engine blocks, transmission casings, and brake components, meeting the strict tolerance requirements of the automotive industry.
Aerospace Accessory Fabrication
Processes lightweight alloy parts (aluminum, titanium) with high precision, adhering to aerospace manufacturing standards.
General Precision Engineering
Used in small-batch and mass production of precision hardware, tooling, and custom components.
FAQ
What is the main difference between the M510 and M620 models?
The primary differences lie in worktable size (500×1000mm vs. 600×2000mm), max. table travel (1140mm vs. 2230mm), and load capacity (800kgs vs. 1500kgs). Choose based on your workpiece dimensions and weight.
Can this machine handle hard materials like stainless steel?
Yes. With a 7.5kw spindle motor and high-quality grinding wheel compatibility, it efficiently grinds stainless steel, alloy steel, and other hard materials while maintaining precision.
Is the machine easy to maintain?
Absolutely. The integrated dust collection and coolant systems reduce debris buildup, and key components (spindle, hydraulic system) are designed for easy access. Regular lubrication of guideways and bearings is the main maintenance requirement.
Does it support automatic operation?
Yes. It features automatic crossfeed (0.5~12mm) and rapid traverse functions, enabling semi-automatic grinding for improved efficiency and consistency.
