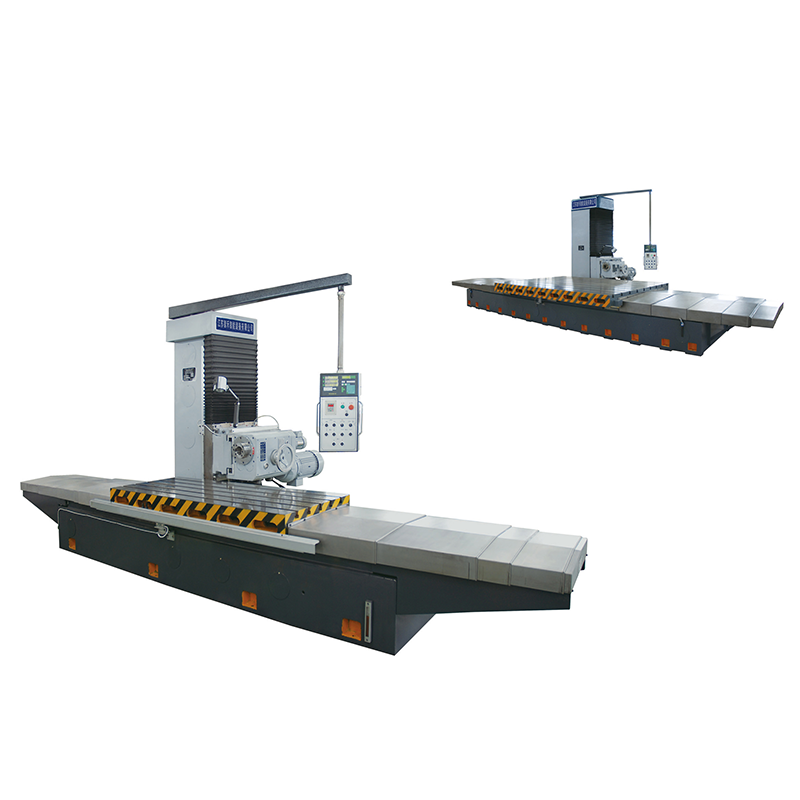

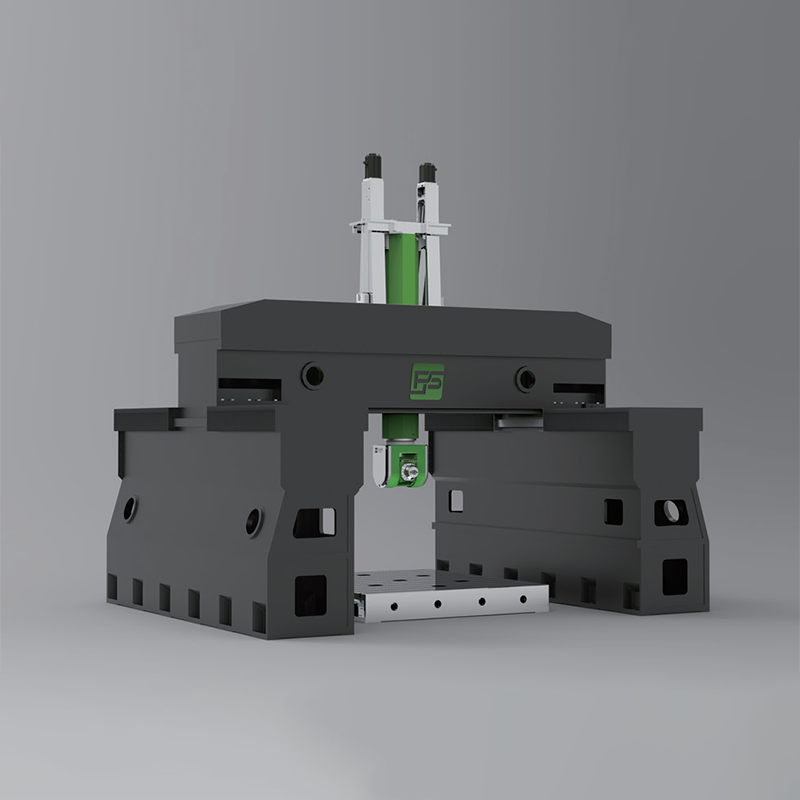

Product Overview
With its powerful motor configuration, rigid structure, and stepless speed change technology, this series excels in high-speed machining under heavy-load conditions. Available in multiple models with varying processing ranges and load capacities, it caters to the diverse needs of small to large-scale manufacturing. Whether for general mechanical processing or heavy-duty component production, the horizontal milling machine delivers reliable performance, precise results, and long service life, making it an indispensable tool in modern workshops.
Key Features
Wide Processing Range
Covers a maximum processing size of 3000×1000 mm (L×H) (X1020 model), accommodating large workpieces and complex machining tasks. The adjustable worktable and milling head ensure flexibility for different workpiece sizes and shapes.
Heavy-Duty & High-Speed Performance
Equipped with a 7.5 kw side milling head motor and 2.2~7.5 kw worktable feed motor, the machine delivers strong cutting force for heavy-load processing. The stepless speed change feature allows for smooth speed adjustment, adapting to different materials and machining requirements.
Robust & Stable Construction
Built with a high-strength frame and reinforced worktable, the machine can withstand a maximum load capacity of up to 15000 kg (X1020 model). The rigid structure minimizes vibration during high-speed operation, ensuring machining precision and stability.
Flexible T-Slot Design
The worktable features 59 T-slots (varies by model) with widths of 2228 mm, providing secure clamping of workpieces of different sizes. The reasonable T-slot spacing ensures uniform force distribution, preventing workpiece displacement during machining.
User-Friendly Operation & Maintenance
Comes with an intuitive control system and easy-to-operate interface, reducing the learning curve for operators. The machine is designed with convenient maintenance access, and key components are selected for durability, minimizing downtime and maintenance costs.
Detailed Specifications
Technical Specifications | Unit | XT1010Y | X1070 | X1010 |
Max. Processing capacity (L×H) | mm | 2000×800 | 1800×800 | 2000×800 |
Width of the worktable | mm | 1000 | 700 | 1000 |
Power of worktable feed motor | Kw | 2.2 | 2.2 | 2.2 |
Power of side milling head motor | Kw | 7.5 | 7.5 | 7.5 |
Side milling head lifting motor power | Kw | 1.5 | 1.5 | 1.5 |
Number of milling heads | piece | 1 | 1 | 1 |
Speed of milling | - | Stepless speed change | Stepless speed change | Stepless speed change |
Range of the spindle speed | - | 6 level (82~506 rpm) | 6 level (82~506 rpm) | 6 level (82~506 rpm) |
Number of T-slots | - | 5 | 5 | 5 |
Width of the T-slot | mm | 22 | 22 | 22 |
Max. load | Kg | 8000 | 3000 | 8000 |
Weight of machine | Kg | 10000 | 6000 | 10000 |
Overall dimensions of machine (L-W-H) | mm | 5500×2500×2500 | 5100×2000×2500 | 5500×2500×2500 |
Technical Specifications | Unit | X1012 | X1020 |
Max. Processing capacity (L×H) | mm | 3000×800 | 3000×1000 |
Width of the worktable | mm | 1250 | 2000 |
Power of worktable feed motor | Kw | 5.5 | 7.5 |
Power of side milling head motor | Kw | 7.5 | 7.5 |
Side milling head lifting motor power | Kw | 1.5 | 1.5 |
Number of milling heads | piece | 1 | 1 |
Speed of milling | - | Stepless speed change | Stepless speed change |
Range of the spindle speed | - | 6 level (82~506 rpm) | 6 level (82~506 rpm) |
Number of T-slots | - | 5 | 9 |
Width of the T-slot | mm | 28 | 28 |
Max. load | Kg | 12000 | 15000 |
Weight of machine | Kg | 15000 | 20000 |
Overall dimensions of machine (L-W-H) | mm | 7800×2600×2800 | 8000×3300×3000 |
Application Scenarios
General Mechanical Processing
Widely used for processing planes, bevels, grooves, and keyways on mechanical parts such as gears, shafts, and brackets. Suitable for small-batch and mass production in general machinery factories.
Heavy-Duty Equipment Manufacturing
Ideal for machining large and heavy components in industries such as mining machinery, construction machinery, and marine engineering. The high load capacity and strong cutting force handle thick-walled workpieces and hard materials with ease.
Agricultural Machinery Production
Processes agricultural machinery parts such as tractor frames, harvester components, and plow blades. The stepless speed change and flexible processing range adapt to the diverse shapes and sizes of agricultural parts.
Construction Machinery Industry
Machines structural parts of construction equipment, including excavator arms, loader frames, and crane components. The robust structure ensures stability during high-load processing of thick steel plates and castings.
Custom Fabrication Workshops
Caters to the customized processing needs of small workshops and large enterprises alike. Whether for prototype production or batch processing, the machine’s versatility and precision meet diverse customer requirements.
FAQ
What is the difference between the models in the horizontal milling machine series?
The main differences lie in maximum processing size, worktable width, load capacity, number of T-slots, and machine dimensions. For example, the X1070 is compact (worktable width 700 mm, max load 3000 kg) for small workpieces, while the X1020 (worktable width 2000 mm, max load 15000 kg) handles large heavy-duty components.
Can the machine process inclined surfaces and complex grooves?
Yes, the machine is designed to process planes, bevels, grooves, and other complex surfaces. The adjustable milling head and stepless speed change allow for precise control of cutting angles and speeds, meeting the requirements of complex machining tasks.
What is the power supply requirement for the horizontal milling machine?
The machine typically requires a 380V/50Hz three-phase power supply. Specific power supply parameters may vary by model; please refer to the operation manual or contact our sales team for details.
Does the machine come with safety features?
Yes, the machine is equipped with multiple safety protections, including emergency stop buttons, overload protection for motors, and protective covers for moving parts. These features ensure the safety of operators and prevent equipment damage.
