Product Overview

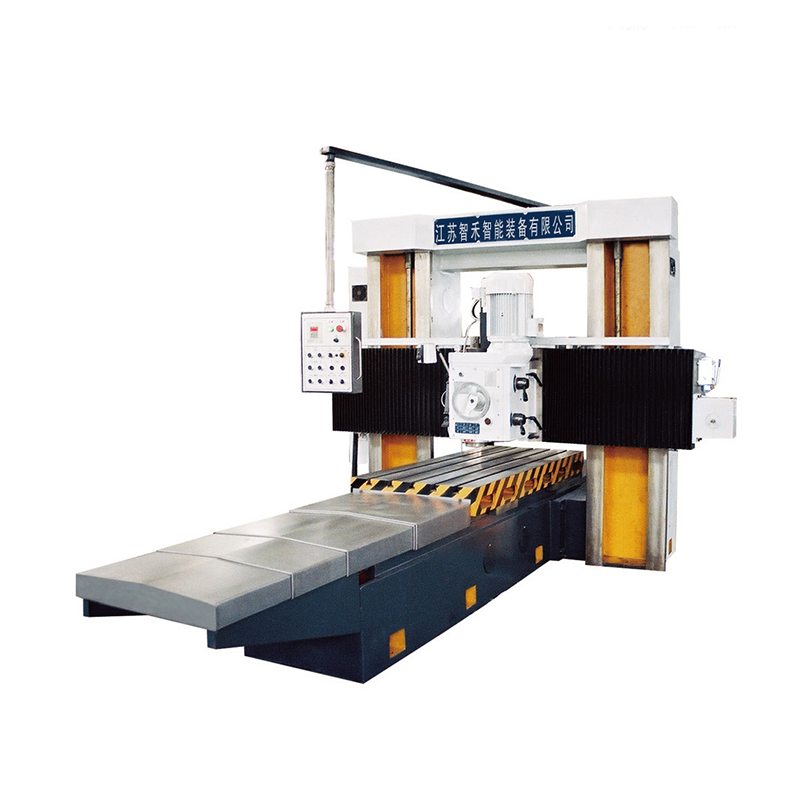

Designed for high-precision surface grinding and milling of large workpieces, this gantry type grinding machine combines robust construction with advanced technology to deliver exceptional performance. With a maximum machining size of 1800×1000×700 mm and a worktable load capacity of 3000 kg, it is widely used in machinery manufacturing, mold processing, and aerospace industries. The machine features stepless feed speed adjustment, a high-power milling head, and a stable gantry structure, ensuring efficient and precise processing of various materials.
Key Features
Superior Grinding & Milling Performance
Integrating surface grinding and milling functions, the X2070 offers all-in-one processing solutions. The 7.5 kW vertical milling head motor and 82-506 rpm spindle speed range (6 levels) provide strong cutting force, while the precise spindle taper (7:24, 50 Number) ensures stable tool clamping and high processing accuracy.
Stable & Durable Structure
Adopting a heavy-duty gantry design with a column distance of 1050 mm, the machine maintains excellent stability during high-load operation. The worktable (1800×700 mm) is equipped with 5 T-slots (22 mm width) for secure workpiece clamping, and the overall machine weight of 8200 kg enhances vibration resistance, ensuring consistent processing quality.
Flexible Feed Control
The milling feed speed supports stepless step change, allowing operators to adjust the speed according to material properties and processing requirements. The 2.2 kW worktable feed motor ensures smooth and precise movement, improving processing efficiency and surface finish.
Large Processing Capacity
With a maximum machining size of 1800×1000×700 mm and a maximum workpiece load of 3000 kg, the X2070 can handle large and heavy workpieces that conventional grinding machines cannot. The compact overall dimensions (5100×2700×2500 mm) save workshop space while maximizing processing range.
Detailed Specifications
Technical Parameters | Description | Unit | X2070 |
Maximum Machining Size (L×W×H) | Max. processing capacity | mm | 1800×1000×700 |
Distance Between Two Columns | Space between machine columns | mm | 1050 |
Worktable Dimensions (L×W) | Size of the processing table | mm | 1800×700 |
Number of T-Slots | Quantity of T-slots on worktable | - | 5 |
T-Slot Width | Width of each T-slot | mm | 22 |
Worktable Feed Motor Power | Power of the worktable driving motor | kw | 2.2 |
Number of Milling Heads | Quantity of milling heads | Piece | 1 |
End Milling Head Motor Power | Power of the vertical milling head | kw | 7.5 |
Milling Feed Speed | Adjustment range of milling feed | - | Stepless step change |
Milling Head Spindle Speed Range | Rotational speed range of the spindle | r/min | 82~506 (6 levels) |
Spindle End Taper Dimensions | Taper specification of the spindle end | - | 7:24 (50 Number) |
Machine Capacity (Max. Load) | Maximum weight the worktable can bear | kg | 3000 |
Machine Weight (Approx.) | Total weight of the machine | kg | 8200 |
Machine Overall Dimensions (L×W×H) | Total size of the machine | mm | 5100×2700×2500 |
Application Scenarios
Mold & Die Manufacturing
Ideal for grinding and finishing large mold bases, cavity surfaces, and die inserts. The high precision and stable performance of the X2070 ensure the surface flatness and roughness of molds meet strict industry standards.
Mechanical Component Processing
Suitable for processing large mechanical parts such as machine tool beds, hydraulic cylinders, and gearboxes. The machine’s strong cutting force and flexible feed control adapt to various materials including steel, cast iron, and non-ferrous metals.
Aerospace Part Finishing
Meets the high-precision surface requirements of aerospace components such as aircraft landing gear parts, engine casings, and structural frames. The stable gantry structure and precise spindle system ensure consistent processing quality for critical components.
Automotive Part Grinding
Perfect for grinding large automotive parts like brake discs, engine blocks, and chassis components. The efficient processing speed and large load capacity improve production throughput in automotive manufacturing.
FAQ
What is the maximum processing size of the X2070 Gantry Type Surface Grinding Machine?
The maximum machining size is 1800×1000×700 mm, suitable for large workpiece processing.
How many T-slots does the worktable have, and what is the slot width?
The worktable is equipped with 5 T-slots, each with a width of 22 mm, ensuring secure clamping of workpieces.
Is the milling feed speed adjustable?
Yes, the milling feed speed supports stepless step change, allowing flexible adjustment based on processing needs.
What is the machine’s approximate weight and overall dimensions?
The machine weighs about 8200 kg, with overall dimensions of 5100×2700×2500 mm, balancing processing capacity and space efficiency.
